Kasuga BLL-2500 Fan type static eliminator

Name: Kasuga BLL-2500 Fan type static eliminator
Brand: KASUGA

ຜູ້ຜະລິດKASUGA

ModelBLL-2500

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Effective length L(mm):2500
Total length L(mm): 2600
Input condition : 100V or 200V (Not switchable)50/60Hz
Power consumption(VA): 160
Mass(kg): 50
Required high-voltage power supplytype static eliminator: PAS-801

This static eliminator sends the generated ions over a certain distance by using a built-in fan, eliminating static from distantly positioned charged objects. It is an optimal device for eliminating static from winders with changing roll diameters and wide webs. Kasuga Denki Inc. offers a wide lineup of fan type static eliminators that satisfy a range of customer needs. The lineup includes the BLL series – with separate high-voltage power supplies featuring a high-power fan and high-power static elimination – and BLT series units with built-in high-voltage power supply.

Features

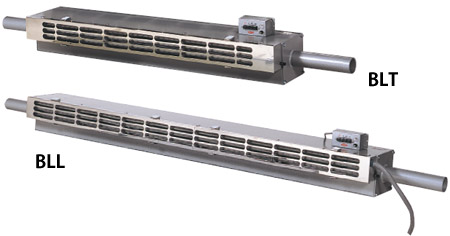

BLL series

These fan type static eliminators are for connecting with separate high-voltage power supplies. With their high-power fan and high-power static elimination, they are best suited for fast-moving, high-voltage charged objects and distantly positioned objects. They have in fact been used for winders in the production process of wide plastic films such as BOPP and BOPET.

Model	Effective length Le(mm)	Total length L(mm)	Input condition	Power consumption(VA)	Mass(kg)	Required high-voltage power supply
BLL-500	500	600	100V or 200V (Not switchable) 50/60Hz	30	13	PAS-704
BLL-1500	1500	1600	100V or 200V (Not switchable) 50/60Hz	110	30	PAS-801
BLL-2500	2500	2600	100V or 200V (Not switchable) 50/60Hz	160	50	PAS-801
BLL-3500	3500	3600	100V or 200V (Not switchable) 50/60Hz	250	67	PAS-802
BLL-4500	4500	4600	100V or 200V (Not switchable) 50/60Hz	310	98	PAS-802
BLL-5500	5500	5600	100V or 200V (Not switchable) 50/60Hz	380	118	PAS-802
BLL-6500	6500	6600	100V or 200V (Not switchable) 50/60Hz	450	135	PAS-802

BLT series

These static eliminators come with a built-in high-voltage power supply and high-power fan.High-voltage wiring is not necessary since the power supply is incorporated in the unit. The units are available at lengths up to 3,000 mm. They are effective for high-voltage charged objects such as plastic films and winders that require static elimination from a distance.

Model	Effective length Le(mm)	Total length L(mm)	Input condition	Power consumption(VA)	Mass(kg)
BLT-500	500	700	100V or 200V (Not switchable) 50/60Hz	80	19
BLT-1000	1000	1200	100V or 200V (Not switchable) 50/60Hz	100	27
BLT-1500	1500	1700	100V or 200V (Not switchable) 50/60Hz	150	36
BLT-2000	2000	2200	100V or 200V (Not switchable) 50/60Hz	170	44
BLT-2500	2500	2700	100V or 200V (Not switchable) 50/60Hz	220	56
BLT-3000	3000	3200	100V or 200V (Not switchable) 50/60Hz	240	66
