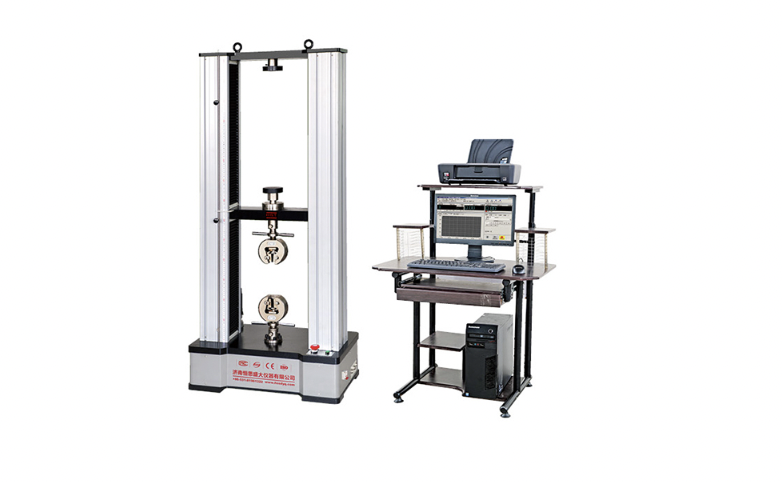

Kason WDW-2 ເຄື່ອງ​ທົດ​ສອບ​ເອ​ເລັກ​ໂຕຣ​ນິກ​ວິ​ທະ​ຍາ​ໄລ​ຄອມ​ພິວ​ເຕີ​ (2 KN)

Max. Load:2 KN

Structure:Four-column Floor Model (Upper Is Compression And Lower Is Tensile OR Upper Is Tensile And Lower Is Compression)

Control Method:Computer Automatic Control

Load Accuracy:1Class

Load Range:2%~100% FS(0.04KN~2KN)

Motor:TaiWan TECO AC Servo Motor

Sensor:High Precision Load Sensor,Made In China

Resolution:1/300000

Measuring Range Of Deformation:2%~100%

Accuracy Indication Of Deformation:≤±1%

Disp. Indicating Relative Error:≤±1%

Displacement Resolution:0.04um

Adjusting Range Of Control Rate Of Load:0.005~5%FS/S

Control Precision Of Control Rate Of Load:

When rate < 0.05% FS/s, the precision is within ± 2% of setting value

When rate ≥ 0.005%FS/s, the precision is within ± 1% of setting value

Adjustment Scope Of Deformation Rate:0.005~5%FN/S

Accuracy Of Deformation Rate:

Test Speed<0.05%FN/s, within the ±2% of the preset value

Test Speed≥0.05%FN/s, within the ±0.5% of the preset value

Adjusting Range Of Displacement Rate:0.05~1000mm/min (Can be customized)

Control Precision Of Displacement Rate:

When rate < 0.5mm/min, within ± 1% of setting value

When rate ≥ 0.5mm/min, within ± 0.5% of setting value

Scope Of The Consistent Load Deformation And Displacement Control:0.5%~100%FS

Accuracy Of The Consistent Load Deformation And Displacement Control:

Preset value≥10%FN, within the ±0.1% of preset value

Preset value<10%FN, within the ±1% of preset value

Tensile Space:800mm (Can be customized)

Compression Space:800mm (Can be customized)

Effective Spacing:400mm (Can be customized)

Load Cell Configuration:One PC (Max Load)

More load cells can be added according to customer requirement.

Extend Configuration:

Large deformation extensometer, High or low temperature test chamber, High temperature oven.

Power Supply:AC 220V±10%, 50Hz (Can be customized)

Grips:Wedge Type, Plate Type And Other Grips As Customers’ Demand

Dimension:740*420*1720mm

Weight:160 KG

Datasheet
