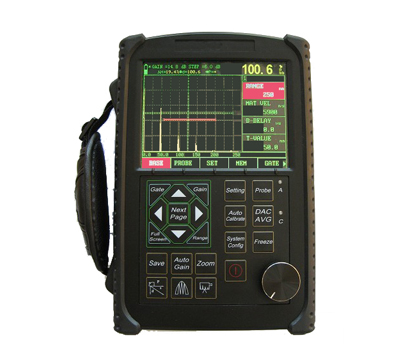

Kason KS 500 ເຄື່ອງກວດຈັບຂໍ້ບົກພ່ອງ Ultrasonic (0 ~ 10000mm)

Measuring Range: 0 ~ 10000 mm

Vertical Linearity Error: ≤3%

Horizontal Linearity Error: ≤0.1%

Sensitivity Leavings: ≥62 dB

Dynamic Range: ≥34 dB

Resolving Power: ≥36 dB

Frequency Range: 0.5~16 MHz

Gain: 0~120 dB

Material Velocity: 1000~15000 m/s

Measurement Mode: Single, Dual, Thru

Pulse Displacement: -20~+3400 μs

Zero: 0.0~99.99 μs

Port Type: BNC/ LEMO

Operating Temperature: -20~50℃

H×W×D: 240×156×50 mm

Weight (KG): 1.0 (With Battery)

Datasheet

Features:

Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz dB, ф).

Automated switch three staff gauge ((Depth d, level p, distance s).

Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity.

Convenient to make and use DAC\TCG and AVG to evaluate the echo, the curve can be modified and compensated.

6dB DAC functions.

Standards of test for DAC is saved.

500 independence setup, any criterion can be input freely, we can work in the scene without test block.

Big memory of 1000 A graph.

Automated gain and gain scan.

Peak Hold and Peak Memory.

B scan.

AWS D1.1.

Automated make video of test process and play; use USB flash disk, the length of video is unlimited.

Powerful pc software and reports can be export to excel.

Li battery, continue working time up to 10 hours.

The embeded software can be online updated.
