The maximum driving trip: 17.5mm/0.7inch
Indicating error: Not more than ± 10%
Variation of indication: Not more than 6%
The measured profile: Roughness, waviness, the original contour
Parameter: Ra （0.005μm~16μm), Rz (0.02μm~160μm), Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx.
Filter: RC, PCRC, Gauss, ISO13565
The sampling length L: 0.25mm, 0.8mm, 2.5mm, 8mm
Evaluation length L: (1-5)l
Internal storage capacity: 100 groups of original data
External input/ output interface: USB
Electric source: Built-in rechargeable lithium ion battery or external power adapter
Datasheet

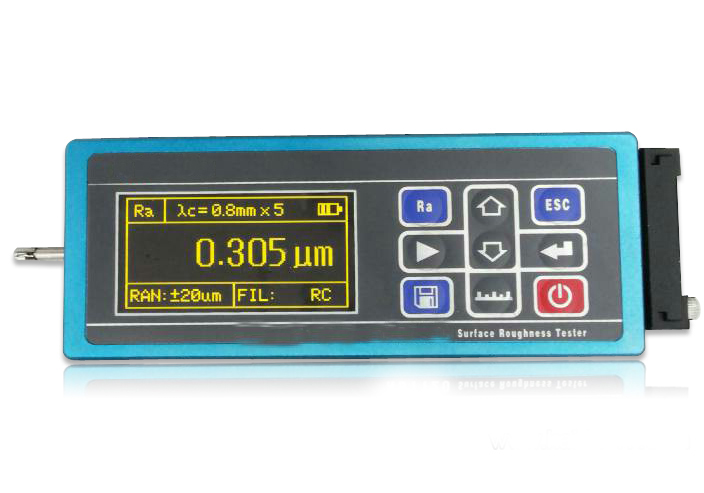

Functions and features:
1.Electromechanical integration design, small volume, light weight, easy to use;
2.Using DSP chip to control and data processing, high speed, low power consumption;
3.Large range, parameters Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx;
4.128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
5.Display information rich, intuitive, can display all the parameters and graphics;
6.Compatible with ISO, DIN, ANSI, JIS national standards;
7.Built-in lithium ion rechargeable battery and a charging control circuit, high capacity, no memory effect;
8.Residual quantity indicator icon, prompting the user to charge;
9.Display of the charging process instructions, the operator can understand the degree of charge
10.Working time more than 20 hours of continuous work
11.Large capacity data memory, can store 100 groups of original data and waveform.
12.Real-time clock settings and display, convenient data recording and storage
13.With automatic dormancy, automatic shutdown and power saving function
14.Reliable control motor to go dead circuit and software design
15.Measurement information display, menu prompt information, false information and switch machine and other tips that information;
16.Full metal shell design, sturdy, compact, portable, high reliability.
17.Can be in English freely switch
18.Can be connected to a computer and printer;
19.Optional sensor surface, hole sensor, measuring platform, sensor, an extension rod and other accessories.
