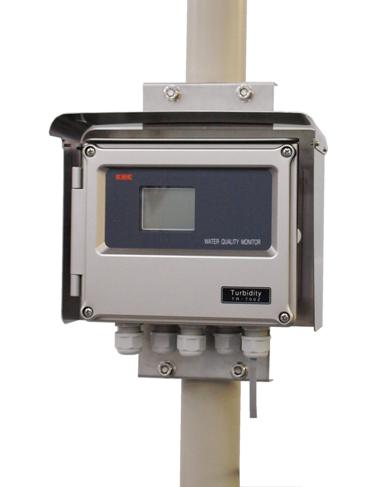

KASAHARA TR-700Z ຢູ່ບ່ອນຢູ່ບ່ອນ 90° ກະແຈກກະຈາຍຂອງແສງປະເພດຄວາມturbidity/SS Meter (0 ~ 500 độ, 0 ~ 500 mg/L)
Indication: LCD 4-digit (with backlight)
Measurement Criteria:
Turbidity: 0 ~ 500 degrees (mg/L) (Designation: NTU)
SS: 0 ~ 500 mg/L (SS conversion value)
* If the relationship between turbidity and SS is other than 1:1, the SS setting range will change.
Resolution:
0.1 degree: 0~100 range
1 degree: 100~500 range
SS converter: Conversion factor (y=a+bx) (x=turbidity, y=SS) can be set.
Representations: Within 3% ± span (depending on standard solution)
Warning Points:
Upper and lower limits 1 circuit
for each A contact (no voltage)
Contact capacity: AC200V 1A (resistive load) or less
Power supply voltage: AC85～240V 50／60Hz
Power Consumption: Approx. 10VA or less
Ambient conditions:
Temperature: -5~45°C
Humidity: 85%RH or less
Dimensions & Weight:
Instrument body: 215×170×95, Approx. 1.75kg (with mounting plate)
With hood: 244×196×105 Approx. 2.5kg (with mounting plate)
Standard Configurations: Instrument body (with mounting plate), immersion detector, Simple Span Calibrator, instruction manual
