KASAHARA SZ-7000 Sludge Interface Meter (AC100V/AC200V, 50～60Hz)

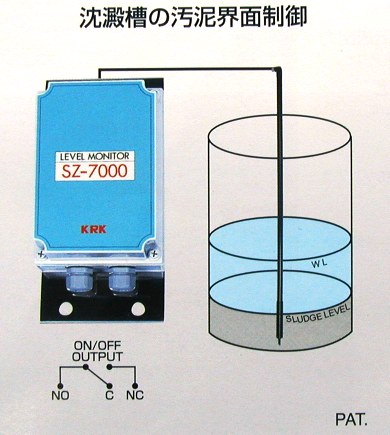

Measurement target: Interfacial measurement of substances precipitated in liquids

Alarm settings: 0~100%(0~20000mg/l equivalent)

Alarm contact point: Non-voltage contact output 200 VAC 2A. Non-inductive load AB contact

Power: AC100V/AC200V, 50～60Hz

External dimensions:

115 (W) × 160 (D) × 83 (H) mm without

cabinet

125 (W) × 255 (D) × 130 (H) mm with cabinet

Weight:

Approx. 2 kg (without cabinet)

Approx. 3 kg (with cabinet)

Mounting method:

A) Wall mounting

B) Pole mounting mounting plate (SUS-304)
