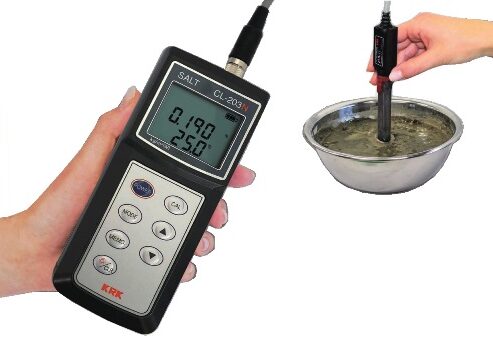

KASAHARA CL－203N ເຄື່ອງວັດແທກເກືອ (0.001 ~ 1.000%)
ຜູ້ຜະລິດ: KASAHARA Model: CL－203N - ຕິດຕໍ່ພົວພັນ
Measurement target: Measurement of salinity of ready-mixed concrete, fine aggregates, aqueous solutions, etc.
Measuring range:
Salinity: 0.001 ~ 1.000% (equivalent to 10 ~ 10000mg/L)
Chloride content: 0.001 ~ 1.999 kg/m3 (After water content is set)
Temperature: 0 ~ 50°C
Electromotive force: -1000mV ~ 1000mV (output for electrode inspection)
Resolution:
Salinity: 0.001% (equivalent to 10mg/L)
mV: 1mV
Water temperature: 0.1°C
Repeatability:
Salt concrete: within ±2% (for equivalent input)
Water temperature: within ±0.5°C (for equivalent input)
Temperature Compensation: Automatic
Memory function: Up to 30
Ambient temperature: 0～45°C
Calibration method:
(1) LOW calibration with 0.1% standard solution
(2) HIGH calibration with 0.5% standard solution
External dimensions:
Body: 70 (W) × 40 (H) × 173 (D) mm
Electrode: Ф16.8×192
Weight:
Body: Approx. 290g
Electrode: Approx. 130g (including cable 1m)
