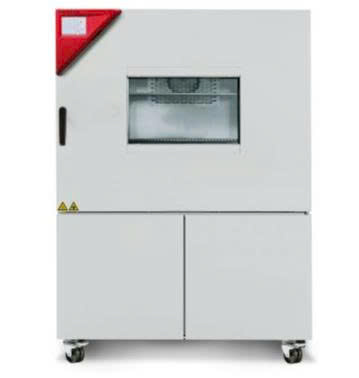

Karg MKF240 ຫ້ອງຄວບຄຸມສະພາບອາກາດແບບປະຕິບັດການ (-40 ~180°C , 10 ~98%RH)
Performance Data Temperature
Temperature range [°C]: -40…180
Temperature variation depending on setpoint [± K]: 0.1…1.5
Temperature fluctuation depending on setpoint [± K]: 0.1…0.5
Average heating-up rate according to IEC 60068-3-5 [K/min]: 5
Heating up time from -40 °C to -40 °C [min]: 60
Cooling down time from 180 °C to -40 °C [min]: 120
Average cooling down time acc. to IEC 60068-3-5 [K/min]: 5
Max. heat compensation at 25 °C [W]: 2800
Performance Data Climate
Temperature range [°C]: 10…95
Temperature fluctuation depending on setpoint [± K]: 0.1…1.3
Humidity range [% RH] :10…98
Humidity fluctuation depending on setpoint [± %] r.F: ≤2.5
Dew point temperature range [°C]: 5…94
Electrical data
Rated Voltage [V]: 400
Power frequency [Hz]: 50
Nominal power [kW]: 6.8
Unit fuse [A]: 16
Phase (Nominal voltage) [ph]: 3~
Outer dimensions
Width net [mm]: 1115
Height net [mm]: 1715
Depth net [mm]: 925
Wall clearance back [mm]: 300
Wall clearance sidewise [mm]: 200
Viewing window width [mm]: 508
Viewing window height [mm] : 300
Doors
Unit doors: 1
Internal Dimensions
Width [mm]: 735
Height [mm]: 700
Depth [mm]: 443
Further Dimension
Interior volume [L]: 228
Net weight of the unit (empty) [kg]: 360
permitted load [kg]: 70
Load per rack [kg]: 30
Environment-specific data
Sound-pressure level [dB(A)]: 65
Fixtures
Number of shelves (std./max.): 1/6
