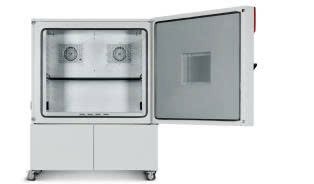

Karg MK1020 ຫ້ອງອຸ່ນແລະຫ້ອງເຢັນ (-40 ~180 °C, 11.5kW)
Performance Data Temperature
Temperature range [°C]: -40…180
Temperature variation depending on setpoint [± K]: 0.1…1.8
Temperature fluctuation depending on setpoint [± K]: 0.1…0.5
Average heating-up rate according to IEC 60068-3-5[K/min]: 5.5
Heating up time from -40 °C to 180 °C [min]: 60
Cooling down time from 180 °C to -40 °C [min]: 120
Average cooling down time according to IEC 60068-3-5 [K/min]: 5
Max. heat compensation at 20 °C [W]: 6000
Electrical data
Rated Voltage [V]: 400
Power frequency [Hz]: 50
Nominal power [kW]: 11.5
Unit fuse [A]: 32
Phase (Nominal voltage) [ph]: 3~
Outer dimensions
Width net [mm]: 1580
Height net [mm]: 2005
Depth net [mm]: 1480
Wall clearance back [mm]: 300
Wall clearance sidewise [mm]: 200
Viewing window width [mm]: 508
Viewing window height [mm]: 300
Doors
Unit doors: 1
Internal Dimensions
Width [mm]: 1200
Height [mm]: 1020
Depth [mm]: 810
Further Dimension
Interior volume [L]: 991
Net weight of the unit (empty) [kg]: 621
permitted load [kg]: 200
Load per rack [kg]: 40
Environment-specific data
Sound-pressure level [dB(A)]: 65
Fixtures
Number of shelves (std./max.): 1 / 11
