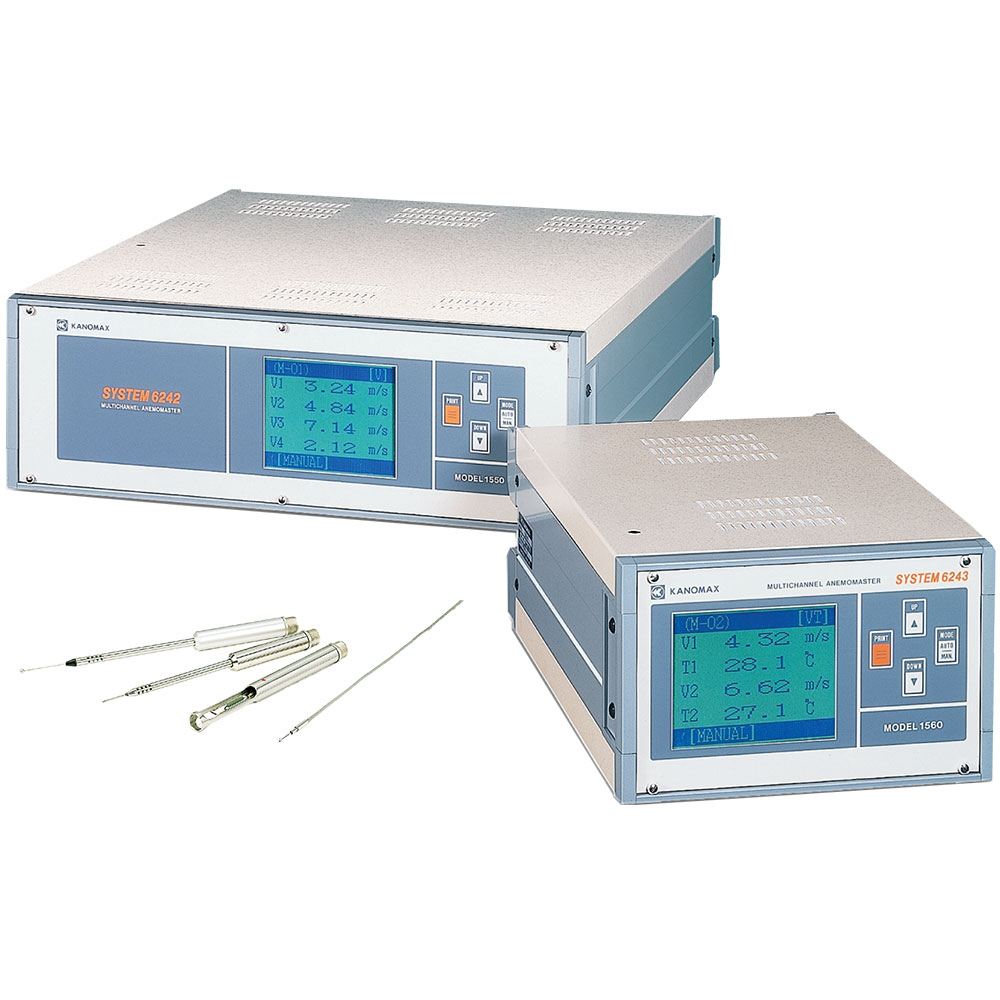

Kanomax 1560 MULTI-CHANNEL ANEMOMETER

Manufacturer: Kanomax

Model: 1560

Origin: Japan

Warranty: 12 months

- Display Resolution:

0.01 m/s (@ range of 0 to 9.99m/s)

0.1 m/s (@ 10 m/s or more)

0.1°C (Temperature)

0.1% (Relative Humidity)

- Number of module slots: 6

- Analog output: 0 to 5 V (with optional module)

- Interface: RS-232C

- Operation Temperature: 41 to 104°F (5 to 40°C) with no condensation

- Storage Temperature Range: 14 to 122°F (-10 to 50°C) with no condensation

- Dimensions: 8.9″ x 12.8″ x 5.5″ (226 x 325 x 140mm)

- Weight: 11lbs (5kg)

- Power: AC 100V (50/60 Hz)

- Standard Accessory: Meter, Operation Manual, RS-232C Cable, Power Cord, Fuse

- Benefits:

High speed flow measurements

Measuring very low turbulence intensities

Rapid temperature measurements

For a larger system, connect up to 5 units in a cascade and add a computer for control

Flexibility in system configuration means greater freedom, simplicity, and efficient in measurement

- Applications:

Ventilation monitoring for energy efficient building

Evaluate cooling efficiency in the electronic device

Aerodynamics Research

Production Control

Product Development
