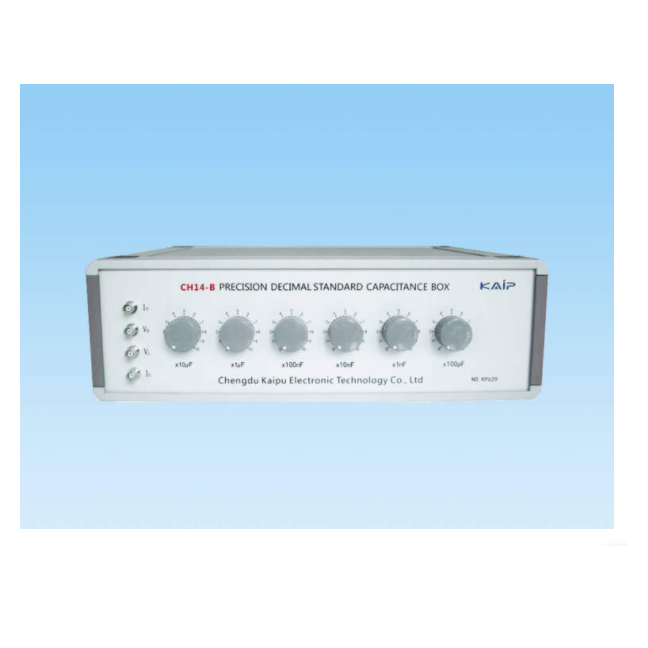

KAIP CH14-B Precision Decimal Standard Capacitance Box (100pF～111.1110μF)

Operation conditions

Ambient temperature: (23±2) °C

Relative humidity: （53±5）%

1. Capacitance range: 100pF～111.1110μF

2. Minimum step size: 100pF

3. Digits of reading: Six-digit decimal system

4. Zero-switch capacitance: <0.00005pF

5. Error: ±0.05%

6.Output mode: Three-terminaland four-terminaloutput

7. Calibration frequency/operating frequency (f):

100pF～1μF: 1,000Hz

1μF～111.1110μF: 100Hz

8.Maximum operating voltage (U):

100pF～1μF: ≤100V

1μF～111.1110μF: ≤50V

Datasheet

Features

CH14-B precision decade standard capacitance box is a standard capacitance measuring instrument designed for measurement institutes, research institutes, factories and laboratories. The capacitance range is from 100pF to 111.1110μF with a minimum step of 100pF and zero-switch capacitance less than 0.00005pF. The capacitance box has six-digit decade readings.

This capacitance box has both three-terminal and four-terminal output modes and can be connected to the instrument through BNC socket. Three-terminal output is on the right side and four-terminal output is on the left side.

The capacitance box adopts new-structure changeover switch, high-quality capacitor synthetic material, and precision standard capacitor manufactured through special processing. It has stable and reliable capacitance and is easy to use.
