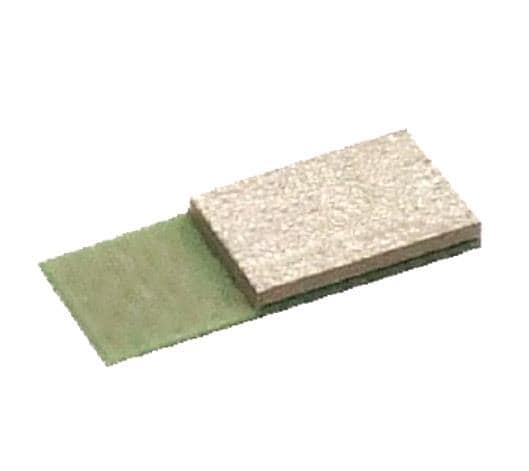

Kaga FEI ES2810AA2 ມູດູນ Bluetooth BLE 5.0 (nRF52810) ໂມດ 2Mbps, ອະນເທນນາ, ARM M4 24kB RAM, ໜ່ວຍຂະໜາດ 3.25 x 8.55 x 1.00 mm

Core: ARM Cortex M4

Width: 3.25 mm

Height: 1 mm

Length: 8.55 mm

Antenna: Internal

Protocol: BLE

Data Rate: 2 Mb/s

Frequency: 2.402 GHz to 2.48 GHz

Shielding: Shielded

Dimensions: 3.25 mm x 8.55 mm x 1 mm

Memory Size: 192 kB

Output Power: 4 dBm

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Receiver Sensitivity: - 93 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.7 V

Operating Supply Voltage: 3 V

Supply Current Receiving: 11.2 mA

Supply Current Transmitting: 15.4 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
