Junray ZR-D13E ວິທີການຕ້ານທານເຄື່ອງທົດສອບຄວາມຊຸ່ມຊື່ນຂອງອາຍແກັສ (0~40VOL%, ±2VOL%)

Moisture content: Range: (0~40)VOL%, Resolution: 0.01VOL%, Error: ±2VOL%

Response time: ＜10s

Pressure: Range: (60～130)kPa, Resolution: 0.01kPa, Error: ±0.5kPa

Temperature of chimney: ≤180℃

Accuracy: ± 2% RH at 25 ℃, (0~90)%RH/ ± 3% RH at (90~100)%RH

Repeatability: Under the same measurement conditions, the difference between the two measurement results shall not exceed 2% RH

Reproducibility: Under different measurement conditions, the difference between the two measurement results shall not exceed 6% RH

Data storage: 10000 groups

Battery: 3 hours，fully charged in 2.5h

Working condition: (-20~50)℃, (0~95)％RH

Preheating time: ≤10min

Power Supply: AC(220±22)V, (50±1)Hz

Total length: 1m

Weight: About 2.4kg

Power consumption: ≤200W

Product Detail

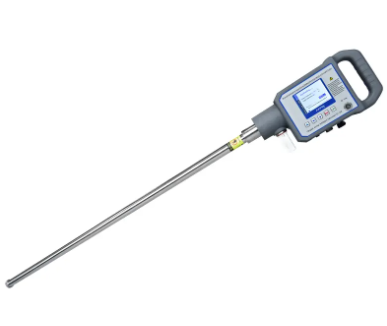

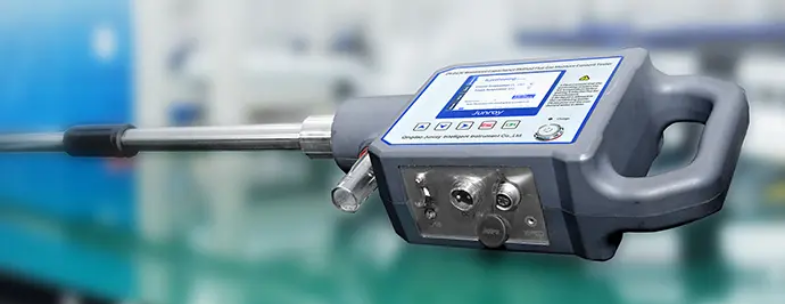

ZR-D13E Resistance capacitance method flue gas moisture content Tester adopts the RC method（Resistance capacitance method） to measure the moisture content of the flue, and the whole process is accompanied by heat, which overcomes the complicated working conditions of high temperature, high humidity, high dust and high corrosion of the flue.The direct reading instrument is widely used in industrial field measurement, coal-fired power plant emission detection, environmental monitoring department testing and other fields.

Standards

>  GB/T 11605-2017    Humidity measurement method

>  HJ 836-2017            Determination of low concentration particulate matter in exhaust gas from stationary pollution sources gravimetric method
