Junray ZR-3061 ເຄື່ອງທົດສອບອັດຕາການໄຫຼຂອງອາຍແກັສ flue (0 ~ 2000Pa, 1 ~ 45m/s)

Flue gas dynamic pressure: Range: (0 ~ 2000) Pa, Resolution: 1 Pa, Maximum permitted error: ± 2%

Flue gas static pressure: Range: (-30 ~ 30) kPa, Resolution: 0.01 kPa, Maximum permitted error: ± 4%

Flue gas temperature: Range: (0 ~ 500) ℃ (expandable), Resolution: 1 ℃, Maximum permitted error: ±3 ℃

Flue gas flow rate: Range: (1 ~ 45) m/s, Resolution: -, Maximum permitted error: ± 5%

Ambient atmospheric pressure: (50 ~ 130) kPa

Operating temperature: (-20 ~ 50) ° C

Charging time: < 6h

Battery operating time: > 24h

Power adapter: Input AC (100~240) V, 50/60Hz; Output DC5V 2A

Size: (length 85 x width 55 x height 140) mm

Weight: About 0.5kg

Power consumption: ≤ 0.5 W

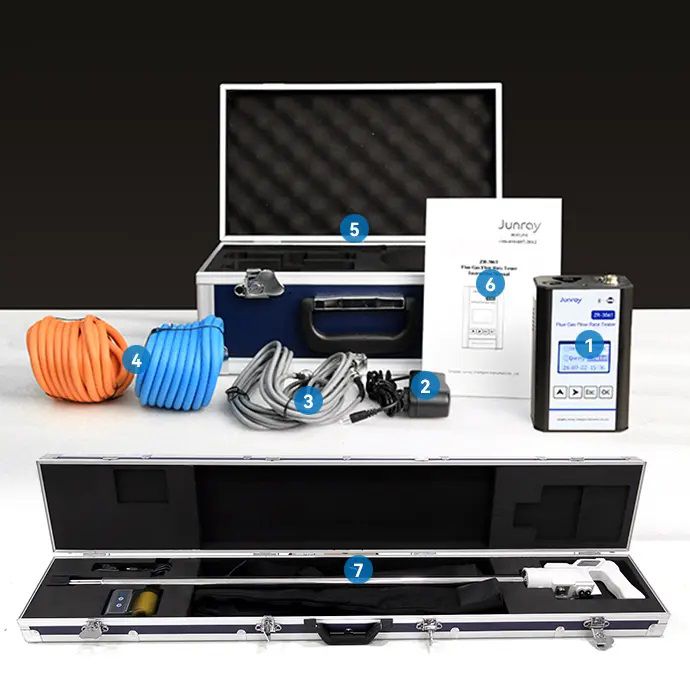

Includings:

1、   Host

2、   power adapter

3、  smoke temperature wire

4、  silicone rubber tube （bule & orange）

5、  Main aluminum box

6、  product manual

7、  ZR-D06B TMS probe & Accessory box

Product details

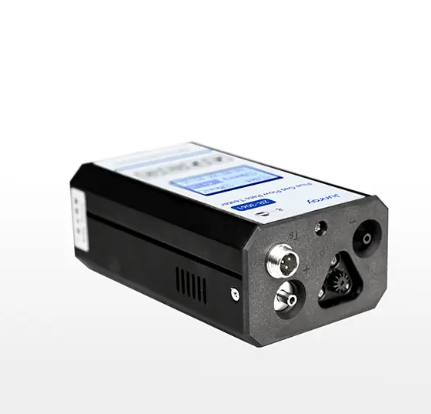

ZR-3061 Flue gas flow rate tester is a handheld portable instrument used to measure the flue gas flow rate, flow, dynamic pressure, static pressure, temperature and other parameters of stationary pollution source.

Features

1. Lightweight

> LCD display, English menu operation.

> Light, portable, and easy to operate.

2. High Test Efficiency

> Imported high-precision micro-differential pressure sensor: high precision, and small temperature drift.

> Calculate the average flow rate, average pressure, flue gas flow and other parameters automatically.

> Automatic zero correction and software calibration functions to ensure the measurement accuracy.

3. Long battery life

> Built-in lithium-ion rechargeable battery: can be used continuously for more than 24 hours.

> Can save 200 groups of measurement data without lost after shutdown
