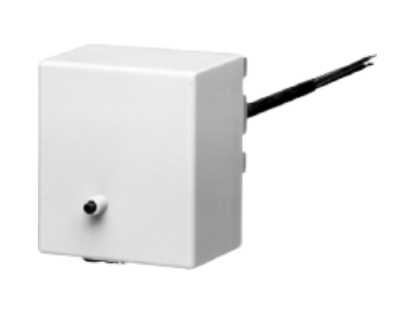

Jumo WTHc ເຄື່ອງຄວບຄຸມອຸນຫະພູມອາກາດຮ້ອນ (20 ~ 80°C, Part No.: 60002161)

Order code: 604514/2280-1-040-070-100-0-00-350-4/574, 711

Basic type extensions: Temperature controller TR and temperature monitor TW with changeover contact, safety temperature limiter STB with N/C contact, and restart lock

Design: With support tube

Control range TR: 20 to 80 °C

Control range TW: 70 to 90 °C

Limit value STB: 100 °C

Capillary length: Without capillary

Process connection: Without

Fitting length: 350 mm

Probe diameter: 4 mm

Extra codes: Microswitch with N/C contact, restart lock, and additional signal contacts, switching head is mounted by 2 screws through the case bottom section

The thermostats of the WTHc series are suitable for use in hot air systems according to DIN 4794 and consist of 3 separate measuring and switching systems with the following functions: temperature controller (TR), temperature monitor (TW), and safety temperature limiter (STB).
