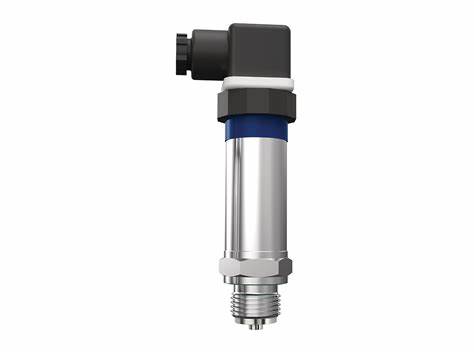

Jumo TAROS S47 P ເຄື່ອງສົ່ງຄວາມກົດດັນ (0 ~ 4 bar)

Order code: 402072/000-491-405-504-20-61-01/000

Basic type extension: None

Input: 0 to 4 bar absolute pressure

Output: 4 to 20 mA, two-wire

Process connection: G 1/2 DIN EN 837

Process connection material: Stainless steel

Electrical connection: Line socket DIN EN 175301-803, form A

Measuring system, filling medium: Silicone oil

Extra codes: None

The pressure transmitter is used to measure relative and absolute pressures in liquid and gaseous media. It offers high process reliability through maximum accuracy as well as over a wide temperature range.
