Jumo PCWR-M-AuNi ເຊັນເຊີອຸນຫະພູມ Platinum-chip (-70 ~ +500 °C, Part No.: 00722609)

Order code:  906138/0-1.7-2.2-1-100-10-1-030

Temperature range: -70 to +500 °C (temporarily 550 °C)

Version: Standard

Width B: 1.7 mm

Length L: 2.2 mm

Height H: 1.0 mm

Nominal value of resistance R0: 100 Ω (Pt100)

Wire length L1: 10.0 mm (standard)

Type of packaging: Clamshell packaging (standard), packaging unit 100 pieces, loose

Tolerance class: F 0.3

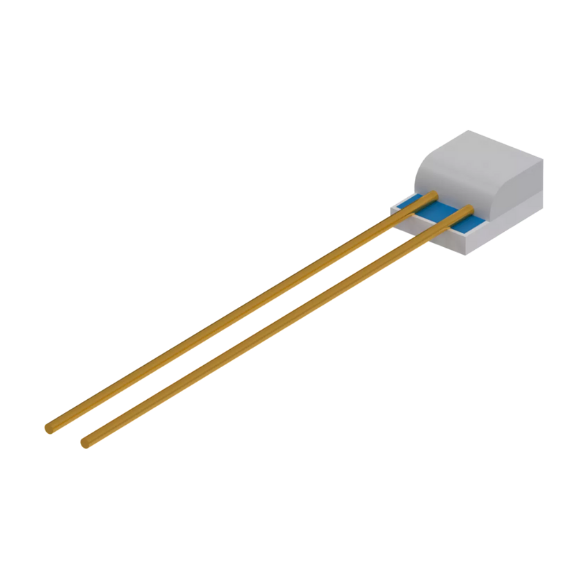

Platinum chip temperature sensors of the PCWR design type belong to the category of temperature sensors that were made using thin-film technology. The sensors have connection wires extending to the center of the sensor and are suitable for confined spaces. The sensors are available as Pt100 and Pt1000.
