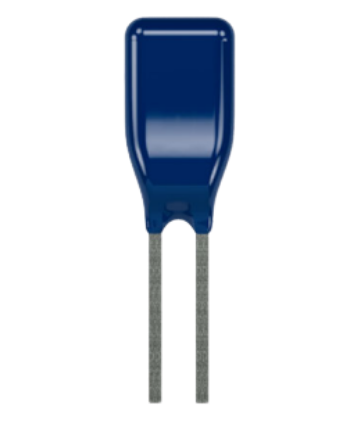

Jumo PCWC-A-SnCu ເຊັນເຊີອຸນຫະພູມ Platinum-chip (-30 ~ +105 °C, Part No.: 00480911)

Order code: 906140/0-4.5-15.8-2-100-7-2-030

Temperature range: -30 to +105 °C

Version: Standard

Width B: 4.5 mm

Overall length LO: 15.8 mm

Height H: 2.0 mm

Nominal value of resistance R0: 100 Ω (Pt100)

Connection length LT: 7.0 mm

Type of packaging: Grip seal bags, loose

Tolerance class: F 0.3

Platinum-chip temperature sensors of the PCWC design type are especially suited for various probes in the heating, ventilation, and air-conditioning industry; the temperature sensor may also be openly positioned in the air flow with nothing surrounding it. The sensors are available as Pt100 and Pt1000.
