Jumo MIDAS DP10 ເຄື່ອງສົ່ງຄວາມກົດດັນຄວາມແຕກຕ່າງ (0 ~ 1.0 bar)

Order code: 401050/000-454-405-593-68-601-36/000

Basic type extensions: None

Input for differential pressure: 0 to 1.0 bar

Output: 4 to 20 mA 2-wire

Process connection: 2× G 1/8 to EN 837

Housing material: PBT

Seal material: FPM

Electrical connection: Round connector M 12 x 1

Extra codes: None

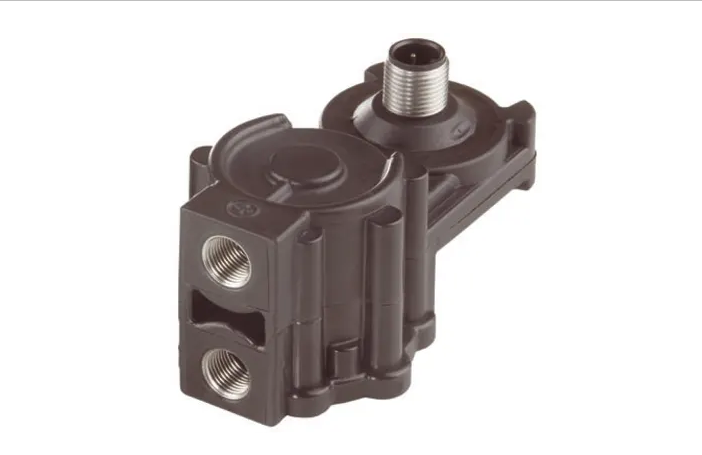

This differential pressure transmitter measures the pressure in liquid and gaseous media. The difference between the two pressures is converted into an analog output signal. The piezo-resistive silicon sensor is built into a stainless steel housing.

Datasheet
