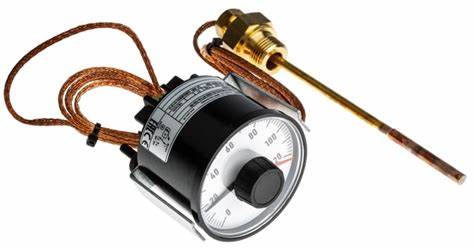

Jumo MICROSTAT-M ເຄື່ອງຄວບຄຸມອຸນຫະພູມ (0 ~ +120 °C)
Order code: 608501/2060-818-21-2000-750-8-000-96-00-100-20/000
Image may be a representation. See datasheet for product details.
Basic type: Design type: 20; case size: ø 060 mm
Display range (AB): 0 to +120
Capillary type (FL): FL21 Cu capillary, Ø 1.0 mm (up to AB end value +300°C)
Capillary length: 2000 mm
Process connection (PC): TF 01; Temperature probe with stepped support tube
Diameter of process connection (PC): Ø 08 mm
Thread type of process connection (PC): Without thread (for TF 01 and TF 11)
Material, probe / support tube: Copper (Cu) / brass (CuZn) (up to 200 °C)
Material of process connection (PC): Without (only TF 01 and TF 11)
Insertion length, process connection (PC) (dimension "EL" or "S"): 100 mm
Switching output (SA): SA 20 One contact
Extra codes (TZ): Without extra code
