Order code: 701552/8-00-00-00-00-00-00-23/000
48 x 96 mm, 1 analog input (universal), 1 digital input, 1 digital input/output (switchable), 2 relays (NO contact); incl. 2 timers, min/max value display, hold function, taring function, setup program (download)
Measuring range:
Thermocouples: -270 to +2500 °C
RTD temperature probe: -200 to +850 °C
Version: Standard with default settings(specifications in plain text)
Option 1: Not used
Option 2: Not used
Option 3: Not used
Option 4: Not used
Option 5: Not used
Option 6: Not used
Voltage supply: AC 110 to 240 V +10/-15 %, 48 to 63 Hz
Extra codes: Without extra code

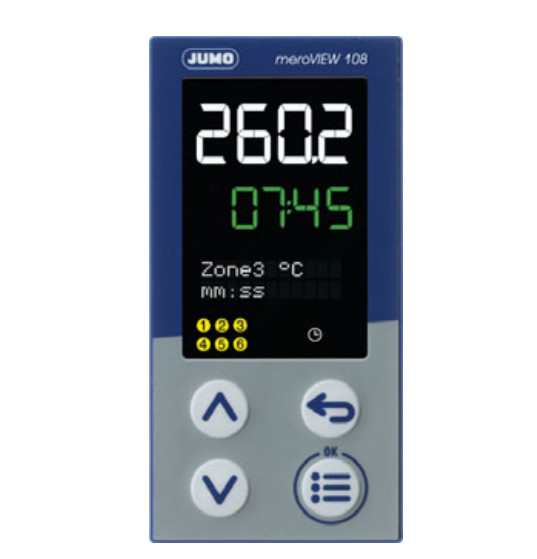

The multifunctional digital controller impresses with the individual design of its user interface and hardware equipment. Analog and digital inputs and outputs, counting inputs, as well as interfaces can be flexibly added to display the required process variables. The indicator masters even complex applications with math and logic functions as well as the implementation of control functions via ST code.
