Order code: 902023/10- 380-1003-1-6-100-104/000
Operating temperature in °C: -50 to +200 °C (standard)
Measuring insert: 1x Pt100 in 2-wire circuit
Tolerance class as per DIN EN 60751: Class B (standard)
Sheath diameter D in mm: ∅ 6 mm
Fitting length EL in mm: 100 mm
Process connection: Screw connection G 1/2
Extra codes: None

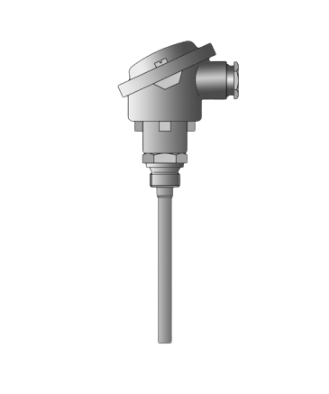

Screw-in RTD temperature probes for standard applications are predominantly used for temperature measurement in liquids and gases. The application areas are, among others, in air-conditioning and refrigeration technology, as well as heating construction and apparatus engineering.
