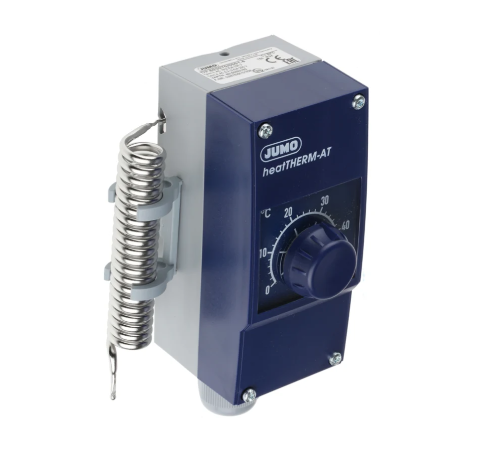

Jumo heatTHERM-AT ເຄື່ອງຄວບຄຸມອຸນຫະພູມທີ່ຕິດຢູ່ດ້ານ (0 ~ +50°C)
Order code: 603070/0001-5-021-671-000-000-70-00-2000-00-40-00-10-6-00-20-20-00-0/000
Basic type extension: Temperature controller (TR)
Type: Surface-mounted thermostat, with thermowell, flange sleeve, capillary, or as contact probe
Control range/limit value range 1 [°C]: 0 to +50 TR, TW
Control range/limit value range 2 [°C]: +70 to +130 STW, STB, Adjustable
Limit value 1 STW/STB: for adjustable control range
Limit value 2 STW/STB: for adjustable control range
Switching differential 1: 7 % of the scale range
Switching differential 2: Without switching differential (STB)
Capillary length 1: 2000 mm
Capillary length 2: 0 mm only for room thermostat
Material of capillary 1: Cu Copper
Material of capillary 2: Without capillary Single thermostat
Process connection: Plain cylindrical probe/contact probe
Diameter 1: Φ 6 mm
Diameter 2: Single thermostat
Probe material 1: CrNi Stainless steel
Probe material 2: CrNi Stainless steel
Capillary insulation: No protective tube
Insulation length (from case): No protective hose
Extra codes: Without extra codes
Image may be a representation. See Datasheet for product details.
