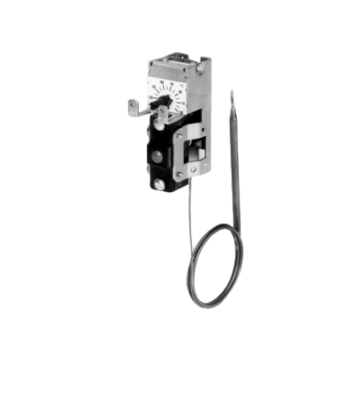

Jumo ETH-70 ເຄື່ອງຄວບຄຸມອຸນຫະພູມທີ່ຕິດຢູ່ແຜງ (30 ~ 110 °C)

Order code: 602010/70-052-00-1000-40-10-00-00-100-00-8/702

Basic type extension: ETH-70 Safety temperature limiter (STB)

Control range: 30 to 110 °C

Switching differential: None

Capillary length: 1000 mm

Capillary material Fernleitung: Cu (copper)

Process connection: Plain cylindrical probe

Process connection thread: None

Process connection material: None

Insertion length: 100 mm

Immersion tube diameter: Without thermowell

Probe diameter: 8 mm

Extra code: Snap-action switch contact, gold-plated (only with switching differential 3 %, 5 %, and 7 %, and STB)

Panel-mounted thermostats from the ETH series monitor thermal processes. The devices are available as safety temperature monitors (STW) and safety temperature limiters (STB). In the event of a malfunction the STB places the system being monitored in a safe operating status.
