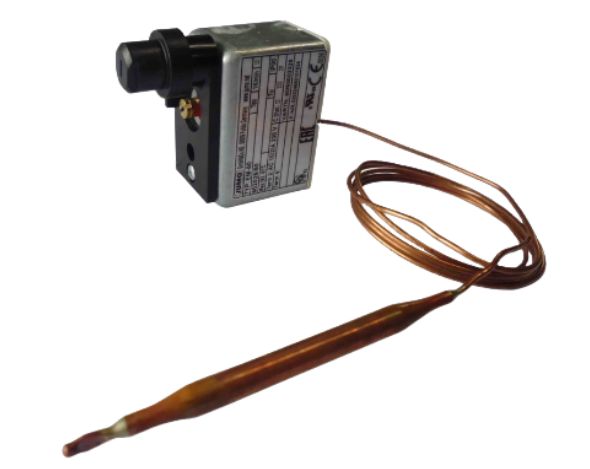

Jumo EM-80 ເຄື່ອງຄວບຄຸມອຸນຫະພູມທີ່ຕິດຢູ່ແຜງ (120 °C)

Order code: 602026/80-000-120-2000-40-10-00-00-000-00-00/000

Basic type extensions: EM-80 Safety temperature limiter (STB), limit value permanently set

Limit value ranges for EM-20-E STW (STB): For permanently set limit value

Permanently set limit values: 120 °C

Capillary length: 2000 mm

Capillary material: Cu (Copper)

Process connection: Plain cylindrical probe

Thread of process connection: Without thread (process connection "10")

Fitting length "S" (immersion tube length): Without protection tube

Diameter "D" (immersion tube diameter): Without protection tube

Diameter "d" (probe diameter): Without protection tube

Extra codes: Without extra codes

The devices are available as safety temperature monitors (STW) and safety temperature limiters (STB). In the event of a malfunction the STB places the system being monitored in a safe operating status. Panel-mounted thermostats operate according to the liquid expansion principle.
