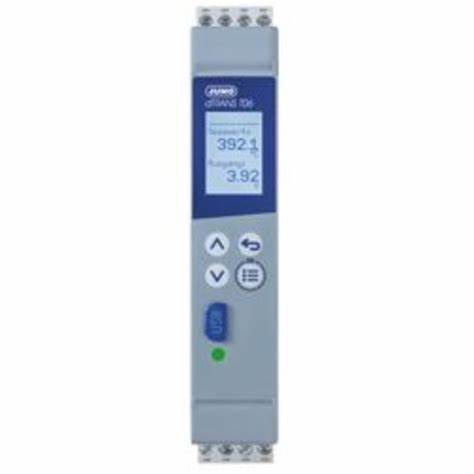

Jumo dTRANS T06 Multifunctional ເຄື່ອງສົ່ງສີ່ສາຍໃນກໍລະນີລົດໄຟ mounting (RTD: -200 ~ +850°C, TC: -270 ~ +2500°C)

Order code: 707071/8-23/000

Measuring range:

  RTD temperature probe: -200 to +850 °C

  Thermocouples: -270 to +2500 °C

Version: Standard with default settings

Voltage supply: AC 110 to 240 V, +10/-15 %, 48 to 63 Hz

Extra codes: None

The transmitter acquires the temperature through an RTD temperature probe or a thermocouple (double thermocouple). The transmitter can also acquire standard signals. Connection takes place through an RTD temperature probe with two-wire, three-wire, or four-wire connection.

Special features: Universal input for a number of sensors and standard signals, intuitive operation and configuration on the device or via USB interface with setup program, RS485 interface Modbus RTU and relay output limit value (option), intelligent additional functions such as min/max drag indicator, operating hours counter and output simulation SIL 2/SIL 3 according to DIN EN 61508 and PL c/d according to ISO 13849 (option), sensor matching for RTD temperature probe, customer-specific linearization, high degree of galvanic signal separation, connection diagram available in the display.

Datasheet
