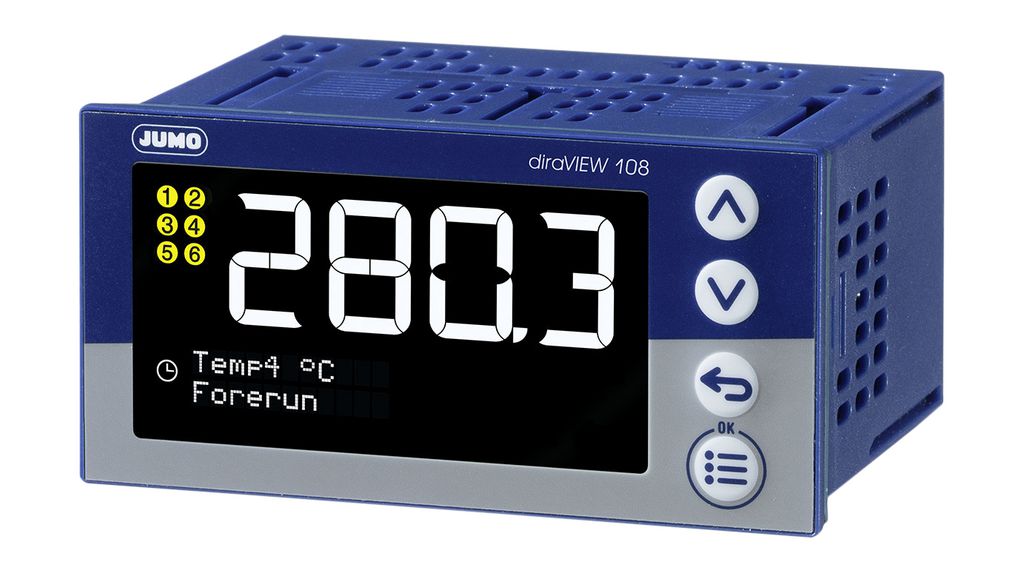

Jumo diraVIEW 108 (Q) ຕົວຊີ້ວັດດິຈິຕອນ (110 ~ 240 VAC, 96 x 48 mm, Part No.:00694785)
ຜູ້ຜະລິດ: Jumo Model: diraVIEW 108 (Q) P/N: 701513/8-0000-23/000 - ຕິດຕໍ່ພົວພັນ
Order code: 701513/8-0000-23/000
Analog input
- Thermocouples
- RTD temperature probe
- Resistance transmitter and resistor/potentiometer
- Voltage, current (standard signals)
Dimensions: T96 mm × 48 mm
1 analog input, 2 digital inputs (digital input 1, alternative to logic output), 2 relays (N/O contact), 1 logic output 0/14 V (alternative to digital input 1) incl. timer, min/max value display, hold function, taring function
Version: Standard with default settings
Voltage supply: AC 110 to 240 V +10/-15 %, 48 to 63 Hz
Extra codes: Without extra code
