Jumo di 308 ຕົວຊີ້ວັດດິຈິຕອນ (110—240V AC, 48 —63Hz)

Order code: 701550/181-400-23/000Basic type extensions: JUMO di 308

including 1 analog input, 2 binary inputs, 2 relay outputs, 2 logic outputs,

96mm x 48mm bezel

Version: standard, with factory settings

Logic outputs (2 are available): 0/12V

Option slot 1: Max. 2 analog output

Option slot 2: Not used

Option slot 3: Not used

Supply voltage: 110 — 240V AC, 48 — 63Hz

Extra codes: None

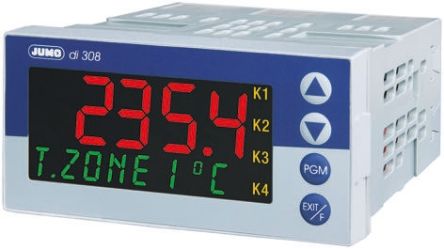

The JUMO di 308 indicating device displays temperatures in °C or °F and standard signals in "plain text". The basic device is already equipped with 1 analog input, 2 binary inputs, 2 relay outputs, 2 logic outputs, and a voltage supply for two-wire transmitters.

Datasheet
