Order code: 202931/10-1003-84-71-5000-120
Typical measuring range: 1 µS/cm to 300 ms/cm
Basic type extension: With internal temperature probe
Measuring insert: 1 × Pt100 in two-wire circuit
Electrode material: Special graphite
Connection: Screw head Pg 13.5 (S8), black, can be rotated
Cable length: 5000 mm
Insertion length: 120 mm

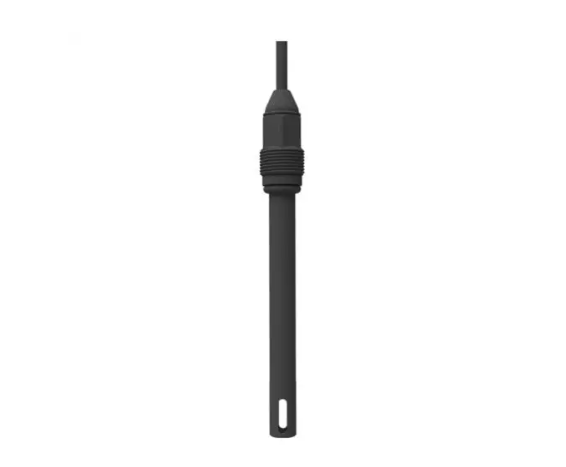

The conductivity sensor has 4 electrodes made of robust special graphite and is characterized by a wide measuring range. It is therefore predestined for determining the conductivity of high salt concentrations. This is why it can be used in salt and sea water applications, among others.
Datasheet
