Order code: 603035/0002-1-014-000-30-00-0-0-00-00-20-13-20-200-8-6/000
Basic type extension: ATH.-SW-2 Temperature monitor (TW)
Design: Rigid shaft (ATHs-SW)
Control range (TW): -20 to +50 °C
Limit value range (STB): With permanently set limit value
Switching differential 1: 3 %
Switching differential 2: None
Capillary length 1: None
Capillary length 2: None
Capillary material 1: None
Capillary material 2: None
Process connection: Screw-in thermowell
Thread of process connection: G 1/2″
Material of process connection: CrNi (stainless steel)
Insertion length: 200 mm
Immersion tube diameter: 8 mm
Probe diameter: 6 mm
Extra codes: None

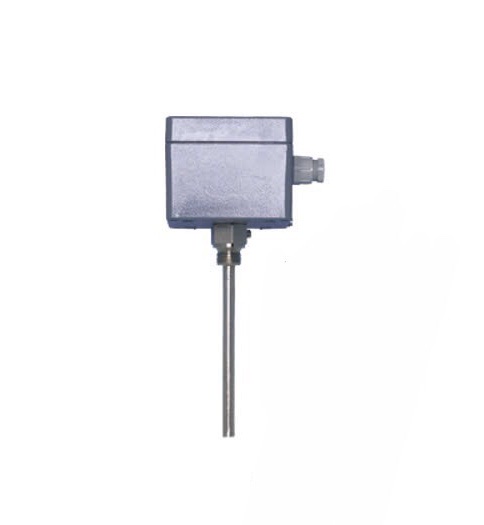

Surface-mounted thermostats of the ATH-SW type series consist of 1 or 2 separate measuring and switching systems. The devices are available as temperature monitors (TW), safety temperature monitors (STW), and safety temperature limiters (STB).
