Jumo ATH-11 ເຄື່ອງຄວບຄຸມອຸນຫະພູມຄູ່ທີ່ຕິດຢູ່ດ້ານ (-20 ~ +50°C)

Order code: 603026/0101-1-014-14-00-15-0-1000-00-20-10-13-00-100-00-6/248

Basic type extension: ATH.-11 Temperature controller/temperature controller (TR/TR)

Design: Rigid shaft

Control range: -20 to +50 °C

Limit value range (STB): -20 to +50 °C

Switching differential 1: None

Switching differential 2:1.5 %

Capillary length 1: None

Capillary length 2: 1000 mm

Capillary material 1: None

Capillary material 2: CrNi (stainless steel)

Process connection: Screw-in thermowell

Thread of process connection: G 1/2″

Material of process connection: None

Insertion length: 100 mm

Immersion tube diameter: Without thermowell

Probe diameter: 6 mm

Extra codes: Wall stands

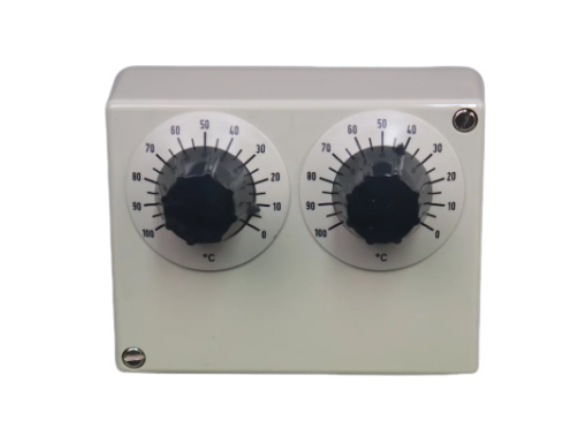

Image may be a representation. See Datasheet for product details.

Surface-mounted double thermostats of the ATH series consist of 2 separate measuring and switching systems. The devices are available as temperature controllers (TR), temperature limiters (TB), temperature monitors (TW), safety temperature monitors (STW), and safety temperature limiters (STB).
