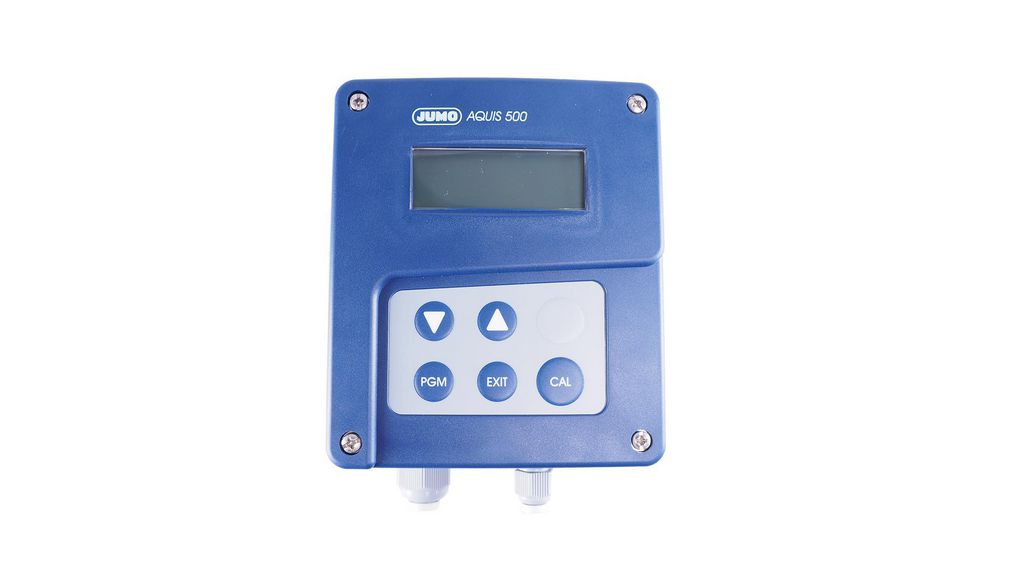

Jumo AQUIS 500 Ci ເຄື່ອງສົ່ງສັນຍານ ແລະເຄື່ອງຄວບຄຸມການນໍາທາງ inductive (0 ~ 2000mS/cm, -50 ~ 250°C, Part No.: 00542691)

Order code: 202566/20-888-888-310-310-23/000

Measuring range:

  Main input conductivity: 0 to 2000 mS/cm

  Secondary input temperature: -50 to +250 °C

Basic type extension: in surface-mounted housing

Output 1 (for main value or continuous controller): analog output 0(4) to 20 mA and 0 to 10 V

Output 2 (for temperature or continuous controller): analog output 0(4) to 20 mA and 0 to 10 V

Output 3: relay with changeover contact

Output 4: relay with changeover contact

Power supply: AC 110 to 240 V, +10 %/-15 %, 48 to 63 Hz

Extra codes: none

The product controls and acquires the electrolytic conductivity or the concentration. Inductively operating conductivity measuring cells can be connected. The controller is used particularly in media with significant deposits such as oil, fat, or gypsum precipitation.

Datasheet
