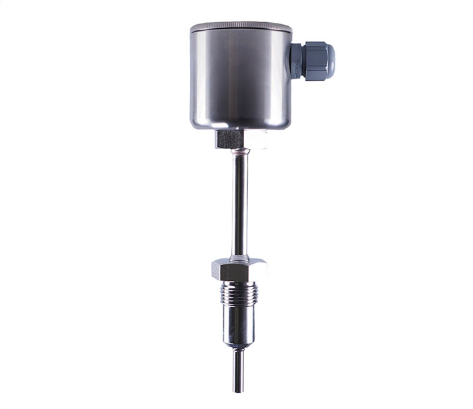

Jumo 902810 ເຄື່ອງວັດແທກອຸນຫະພູມ RTD (-50 ~ +250 °C, Part No.: 00466457)
ຜູ້ຜະລິດ: Jumo Model: 902810 P/N: 902810/20-1001-2-6-25-380-24/452 - ຕິດຕໍ່ພົວພັນ
Order code: 902810/20-1001-2-6-25-380-24/452
Temp.: between -50 and +250 °C
Measuring insert: 1× Pt100 in three-wire circuit
Tolerance class according to DIN EN 60751: Class A (standard)
Protection tube diameter D in: Ø 6 mm
Insertion length EL in mm (25 to 400 mm): 25 mm
Process connection: Screw connection G 1/2 with CIP-compliant conical seal
Protection tube material: Stainless steel 316 L (material-no. 1.4404/1.4435)
Extra code: Wetted, electrolytically polished parts, surface roughness Ra ≤ 0.8 μm
ລາຍລະອຽດ
- ຮັັບປະກັນຄຸນນະພາບ
- ຮັບປະກັນຂອງແທ້
- ສົ່ງເຖິງທີ່
- ທຳທຸລະກໍາງ່າຍ
