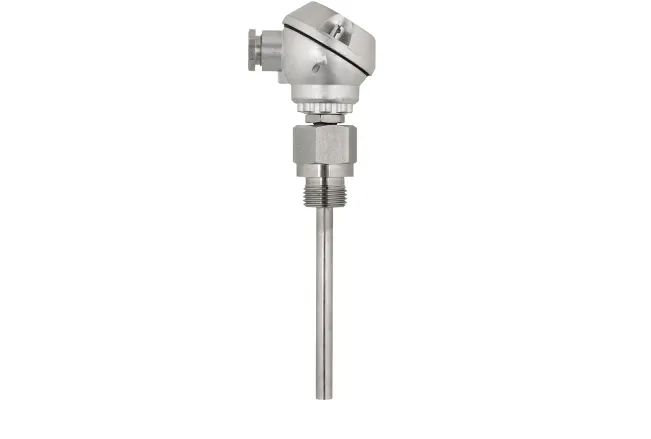

Order code: 901220/40-1040-3-100-104/000
Measuring insert / operating temperature in °C: 1× Fe-CuNi "J", operating temperature -200 to +800 °C, sheath material no. 1.4541
Protection tube diameter D in mm: Ø 3 mm
Insertion length EL/NL in mm (50 to 50000 mm): 100 mm
Process connection: Screw connection G 1/2
Extra codes: Without
Mineral-insulated thermocouples are made of a flexible, thin-walled sheath cable in which the thermocouple wires are embedded in compressed fire-resistant magnesium oxide. The good thermal transfer between the sheath and the thermocouple enables short response times and high measuring accuracy.
