Jumo 901190 ດຶງໃສ່ thermocouples (0 ~ 400°C / metal braiding, Sales No.: 90/00352190)

Order code: 901190/10-848-1040-6-175-11-2500/000

Operating temperature in °C/compensating cable: 0 to 400°C/metal braiding

Measuring insert: 1 x Fe-Con J

Protection tube diameter D in mm: 6mm

Fitting length EL in mm: 20 - 175mm

Compensating cable end: ferrules to DIN 46 228 Part 4 (standard)

Compensating cable length AL in mm (500≤ AL ≤500000): 2500mm (standard)

Extra codes: no extra code

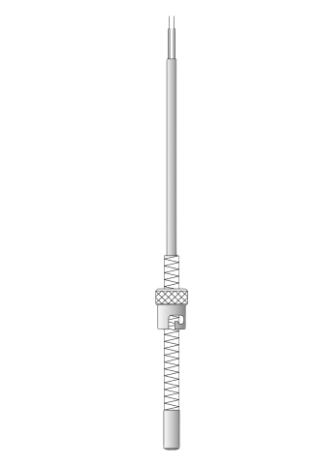

Push-in thermocouples with a bayonet fastener are predominantly used for temperature measurement in solid bodies, friction bearings, and tools (e.g. in the plastics industry). The special shape of the probe tip makes these temperature probes suitable for use in flat and pointed drilled holes.

Datasheet
