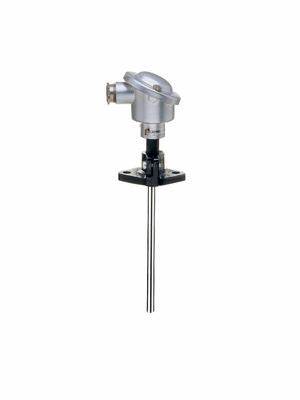

Jumo 901120 ດຶງໃສ່ thermocouples (-200 ~ +1200 °C, Sales No.: 90/00054589)

Order code: 901120/10-1043-15-500-668-27/000

Measuring insert / operating temperature in °C: 1x NiCr-Ni „K“, operating temperature -200 to +1200 °C

Sheath diameter D in mm: Ø 15 mm

Nominal length NL in mm (180 ≤ NL ≤ 1200, NL ≤ 1000): 500 mm, fitting length (EL) 100 to 460 mm

Process connection: Stop flange Ø 15 mm, DIN 43734

Sheathmaterial: Steel X 18 CrNi 28 Mat. No. 1.4749 (operating temperature up to +1150 °C)

Extra codes: None

Push-in thermocouples are predominantly used for measuring temperatures in liquid and gaseous media. Thermowells made of various ceramic materials and heat-resistant steels protect the measuring insert against chemical influences and mechanical damage.

Datasheet
