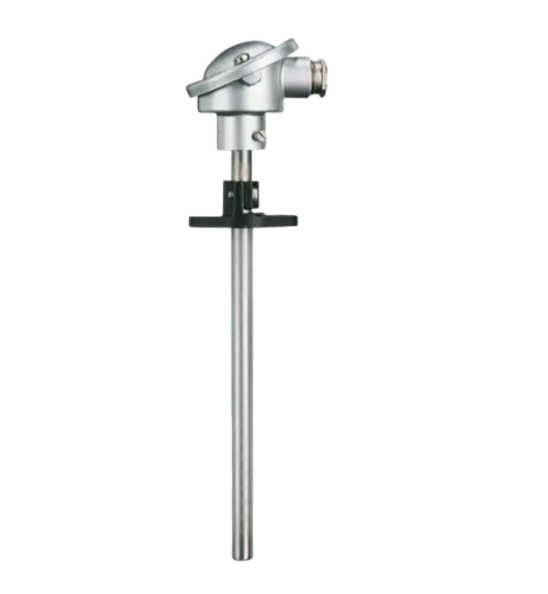

Jumo 901110 ດຶງໃສ່ thermocouples (-200 ~ +1200 °C, Sales No.: 90/00054836)

Order code: 901110/10-1043-22-500-669-27/000

Measuring insert / operating temperature in °C: 1x NiCr-Ni „K“, operating temperature -200 to +1200 °C

Sheath diameter D in mm: Ø 22 mm

Process connection: Stop flange Ø 22 mm, DIN 43734

Extra codes: None

Push-in thermocouples are predominantly used for measuring temperatures in liquid and gaseous media. Thermowells made of various ceramic materials and heat-resistant steels protect the measuring insert against chemical influences and mechanical damage.

Datasheet
