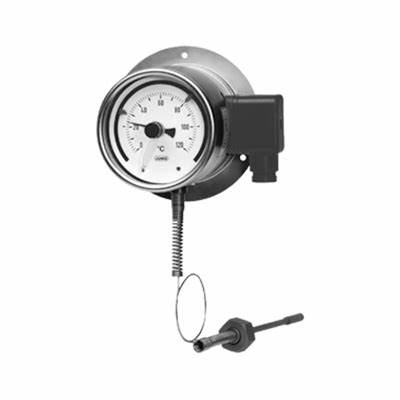

Jumo 608523 Contact dial thermometer (0 ~ +120 ° C)
Order code: 608523/2010-818-21-2000-750-10-000-26-00-100-28/000
Basic type extension: Design type 20, Case size Ø 100 mm
Display range in °C: 0 to +120
Capillary type (FL): FL 21 Cu capillary, approx. Ø 1.0 mm (up to AB end value +300 °C)
Capillary length: 2000 mm
Process connection (PC): TF 01, Temperature probe with stepped support tube
Ø Process connection (PC): 10 mm
Thread type of process connection (PC): Without thread (for TA 01 and TF 11)
Material, probe / support tube: Stainless steel (CrNi, 1.4571)
Material of process connection (PC): Without
Insertion length, process connection (PC) (dimension "EL" or "S"): 100 mm
Switching output: 1 switch
Extra codes (TZ): Without extra code
