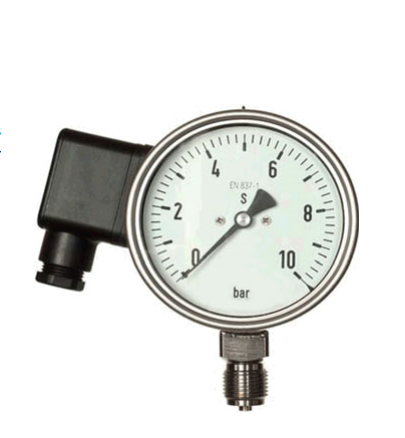

Jumo 404312 ເຄື່ອງສົ່ງຄວາມກົດດັນ (0 ~ 10 bar relative pressure)

Model404312
P/N404312/000-459-405-504-20-65/000
ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ

Order code: 404312/000-459-405-504-20-65/000

Basic type extension: None

Input: 0 to 10 bar relative pressure

Output: 4 to 20 mA, two-wire

Process connection (not front-flush): G 1/2 according to DIN EN 837

Material of process connection: CrNi (stainless steel)

Electrical connection: Junction box (general version)

Extra code: None

It is mainly used in the chemical and process engineering industry as a combination between an on-site analog display with an analog standard output signal for remote transmission.

Datasheet
