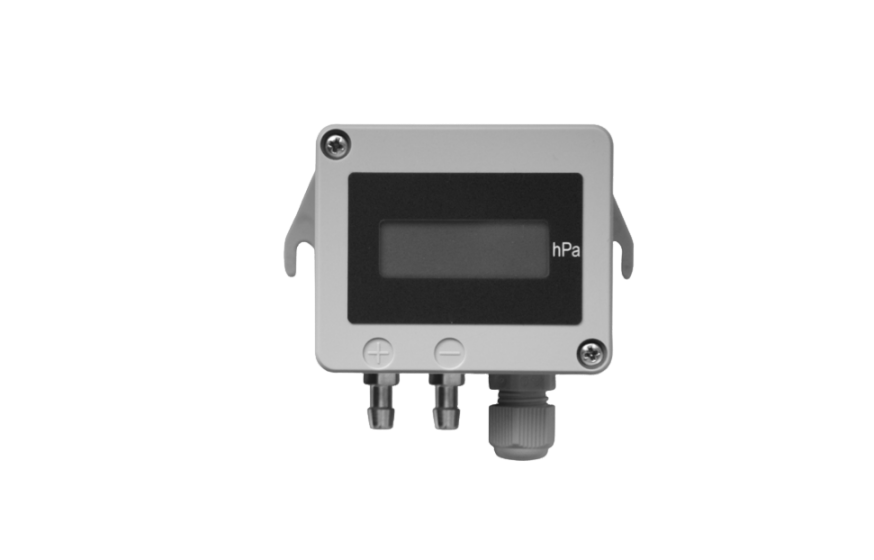

Jumo 402006 Multirange ແລະເຄື່ອງສົ່ງຄວາມກົດດັນທີ່ແຕກຕ່າງກັນ (-100~100hPa áp suất tương đối, Part No.: 00758259)

Order code:  402006/000-444-411-294-07

Measuring range: 0 (-25/-50/-75/-100) to 25/50/75/100 hPa relative pressure, configurable

Output: DC 0(2) to 10 V and 0(4) to 20 mA configurable

Process connection: Hose connection dia. 6.6 mm × 10 mm (for flexible hoses dia. 6 mm)

Electrical connection: Spring-cage terminals

The product enables differential pressure measurement in non-aggressive gases. Permanent overpressure protects the process from dust penetration. The transmitter is mainly used in cleanrooms.
