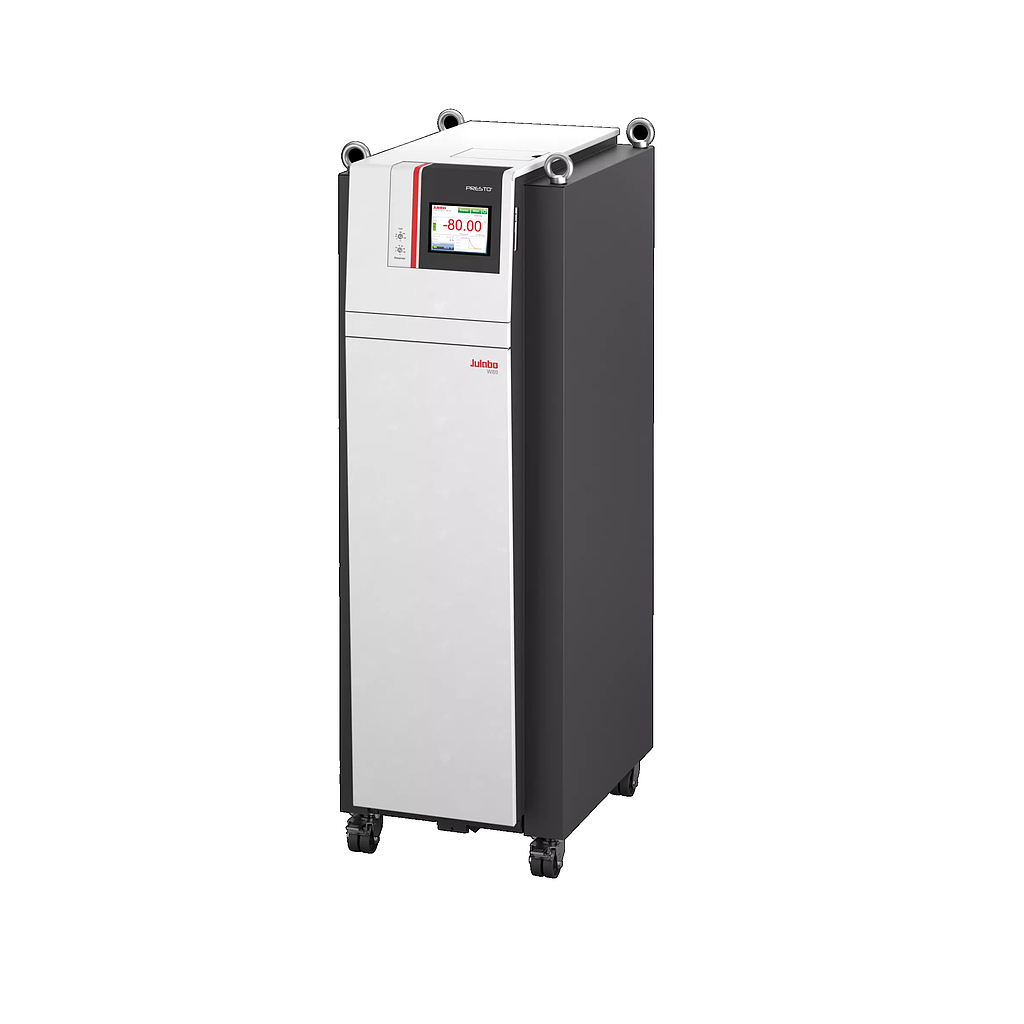

Julabo PRESTO W80 ລະບົບຄວບຄຸມອຸນຫະພູມແບບເຄື່ອນໄຫວສູງ (-80... +250 °C)
Dimensions and volumes:
Dimensions (W × L × H): 16.9 x 25.6 x 49.6 in.
Internal usable expansion volume: 5.6 l
Minimal process volume: 3.9 l
Active heat exchanger volume: 1.7 l
Weight: 350.5 lbs
Pump connections: M24x1.5 male
Cooling Water Connection: G¾ in.
Temperature values:
Working temperature range: -80 ... +250 °C
Temperature stability: ±0.01 ... ±0.05 °C
Setting the resolution of the temperature display: 0.01 °C
Temperature display resolution: 0.01 °C
Ambient temperature: +5 ... +40 °C
Performance values: 230V/50Hz (Schuko Plug - CEE 7/4 Plug Type F)
Heating capacity: 1.8 kW
Cooling capacity: 1.2 kW
Refrigerant stage 1
Refrigerant: R507
Global Warming Potential: 3985
Filling weight: 720 g
Carbon dioxide equivalent: 2.8692 t
Refrigerant stage 2
Refrigerant: R23
Global Warming Potential: 14800
Filling weight: 500 g
Carbon dioxide equivalent: 7.4 t
Pump capacity flow pressure: 0 ... 40 l/min
Circulation capacity pressure: 1.5 ... 24.7 psi
Viscosity max.: 50 cSt
Power consumption: 16 A
Cooling:
Cooling of compressor: 2-stage Air
Cooling water pressure max.: 87 psi
Max. heat dissipated by unit into cooling water: 3 kW
Recommended cooling water properties
Cooling water temperature range: 10 ... 15 °C
Cooling water difference pressure: 21.8 ... 87 psi
Cooling water consumption 2: 2 l/min
Permissible cooling water properties
Cooling water temperature range: 5 ... 35 °C
Cooling water difference pressure 3: 7.3 ... 87 psi
Electronics:
Interfaces: Alarm output / Ethernet / Modbus / Profibus optional / REG/EPROG optional / RS232 / RS485 optional / SD memory card / Standby-Input optional / USB
External pt100 sensor connection: integrated
2nd external Pt100 sensor connection: accessory
Integrated programmer: 8x60 steps
Temperature control: ICC
Absolute temperature calibration: 3 Point Calibration
Temperature display: 5.7" TFT Touchscreen
Temperature setting: Touchscreen
