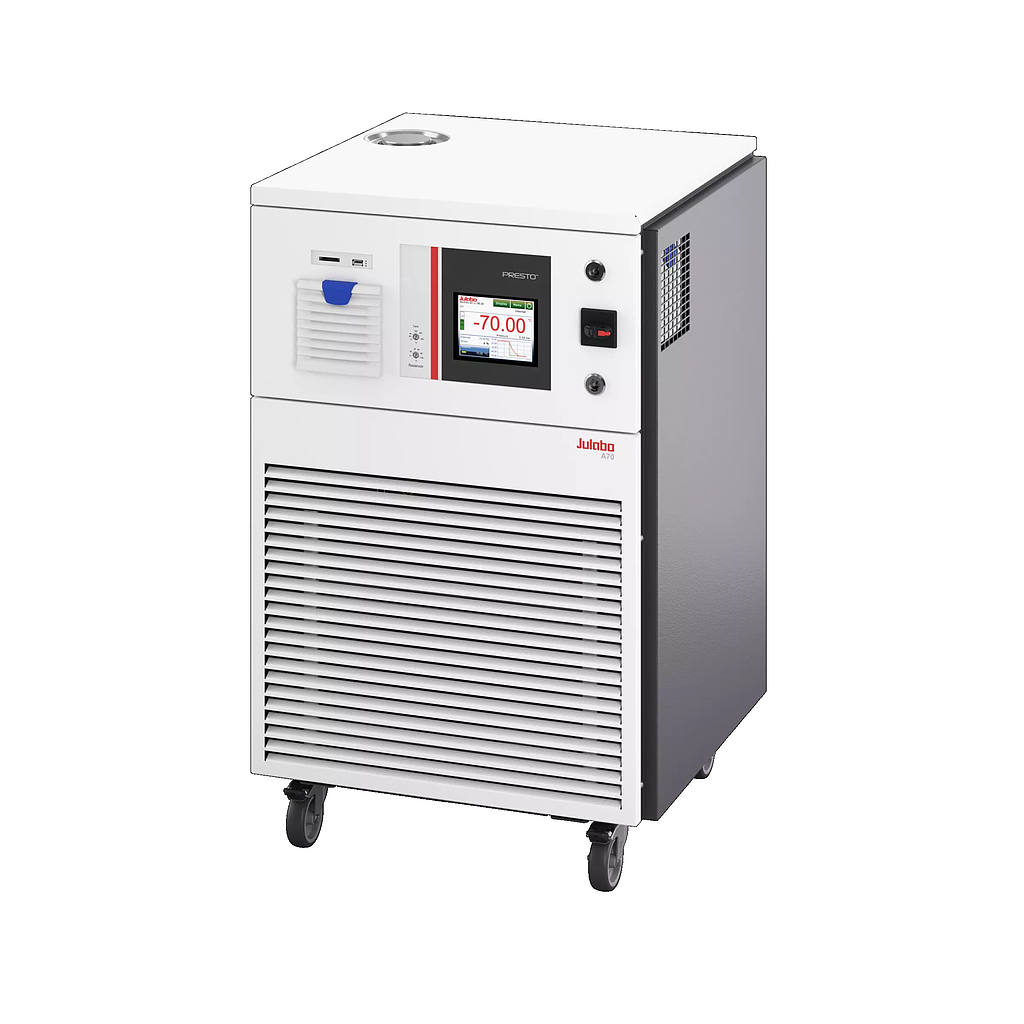

Julabo PRESTO A70 ລະບົບຄວບຄຸມອຸນຫະພູມແບບເຄື່ອນໄຫວສູງ (-75 ... +250 °C)
Dimensions and volumes:
Dimensions (W × L × H): 22.4 x 25.2 x 34.6 in.
Internal usable expansion volume: 4.8 l
Minimal process volume: 2.3 l
Active heat exchanger volume: 1.7 l
Weight: 304.2 lbs
Pump connections: M24x1.5 male
Temperature values:
Working temperature range: -75 ... +250 °C
Temperature stability: ±0.01 ... ±0.05 °C
Setting the resolution of the temperature display: 0.01 °C
Temperature display resolution: 0.01 °C
Ambient temperature: +5 ... +40 °C
Performance values: 230V/50Hz (Schuko Plug - CEE 7/4 Plug Type F)
Heating capacity: 1.8 kW
Cooling capacity: 1.12 kW
Refrigerant stage 1
Refrigerant: R449A
Global Warming Potential: 1397
Filling weight: 650 g
Carbon dioxide equivalent: 0.90805 t
Refrigerant stage 2
Refrigerant: R170
Global Warming Potential: 6
Filling weight: 99g
Carbon dioxide equivalent: 0.000594 t
Pump capacity flow pressure: 0 ... 40 l/min
Circulation capacity pressure: 1.5 ... 24.7 psi
Viscosity max.: 50 cSt
Power consumption: 16 A
Cooling:
Cooling of compressor: 2-stage Air
Electronics:
Interfaces: Alarm output / Ethernet / Modbus / Profibus optional / REG/EPROG optional / RS232 / RS485 optional / SD memory card / Standby-Input optional / USB
External pt100 sensor connection: integrated
2nd external Pt100 sensor connection: accessory
Integrated programmer: 8x60 steps
Temperature control: ICC
Absolute temperature calibration: 3 Point Calibration
Temperature display: 5.7" TFT Touchscreen
Temperature setting: Touchscreen
