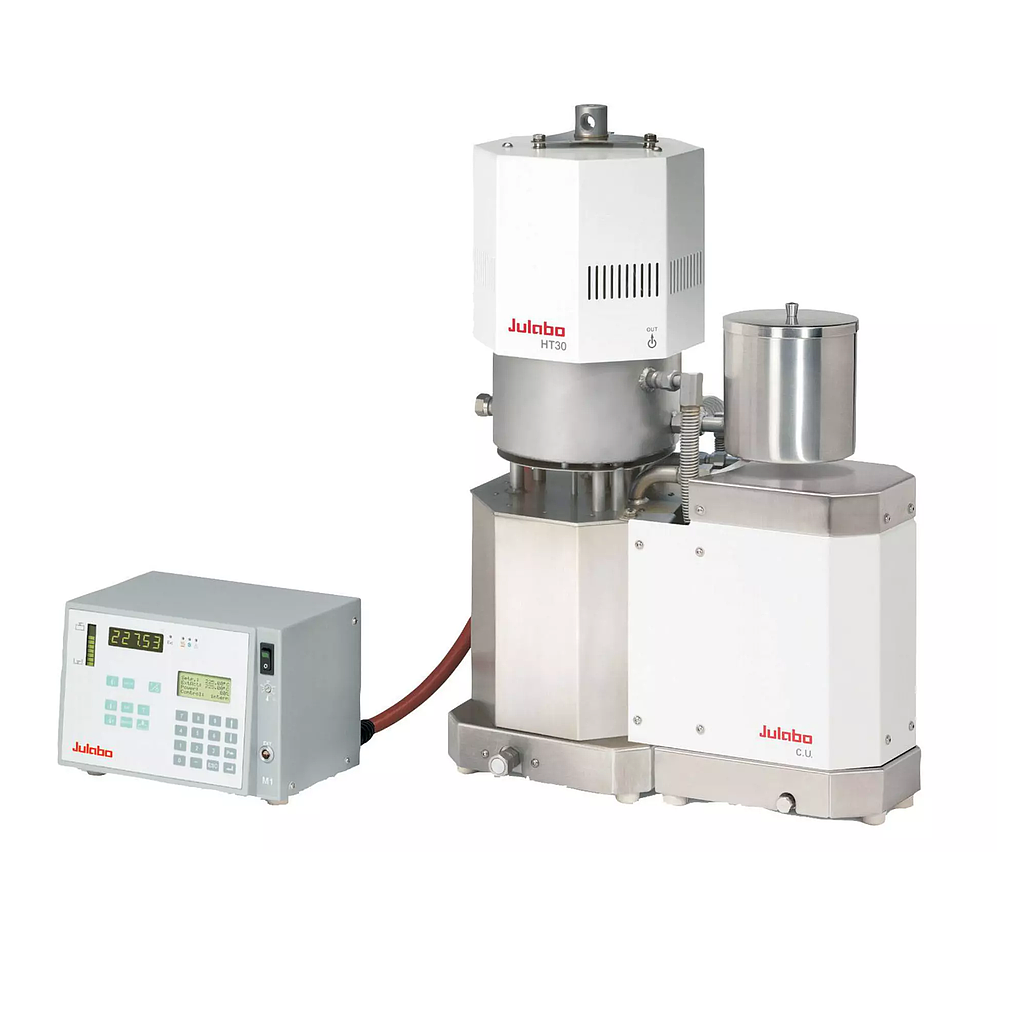

Julabo HT30-M1-C.U. ລະບົບຄວບຄຸມອຸນຫະພູມແບບເຄື່ອນໄຫວສູງ (+40 ... +400 °C)
Dimensions and volumes:
Dimensions (W × L × H): 16.9 x 9.1 x 22.8 in.
Internal usable expansion volume: 2 l
Minimal process volume: 1 l
Active heat exchanger volume: 1.5 l
Weight: 77.2 lbs
Pump connections: M16x1 male
Temperature values:
Working temperature range: +40 ... +400 °C
Temperature stability: ±0.01 ... ±0.1 °C
Temperature display resolution: 0.01 °C
Ambient temperature: +5 ... +40 °C
Performance values: 230V/50Hz (Schuko Plug - CEE 7/4 Plug Type F)
Heating capacity: 3 kW
Pump capacity flow pressure: 14 ... 18 l/min
Circulation capacity pressure: 11.6 ... 17.4 psi
Viscosity max.: 30 cSt
Power consumption: 15 A
Electronics:
Interfaces: Profibus optional / RS232 / RS485
External pt100 sensor connection: integrated
Integrated programmer: 6x60 steps
Temperature control: ICC
Temperature display: LED
Temperature setting: Keypad
