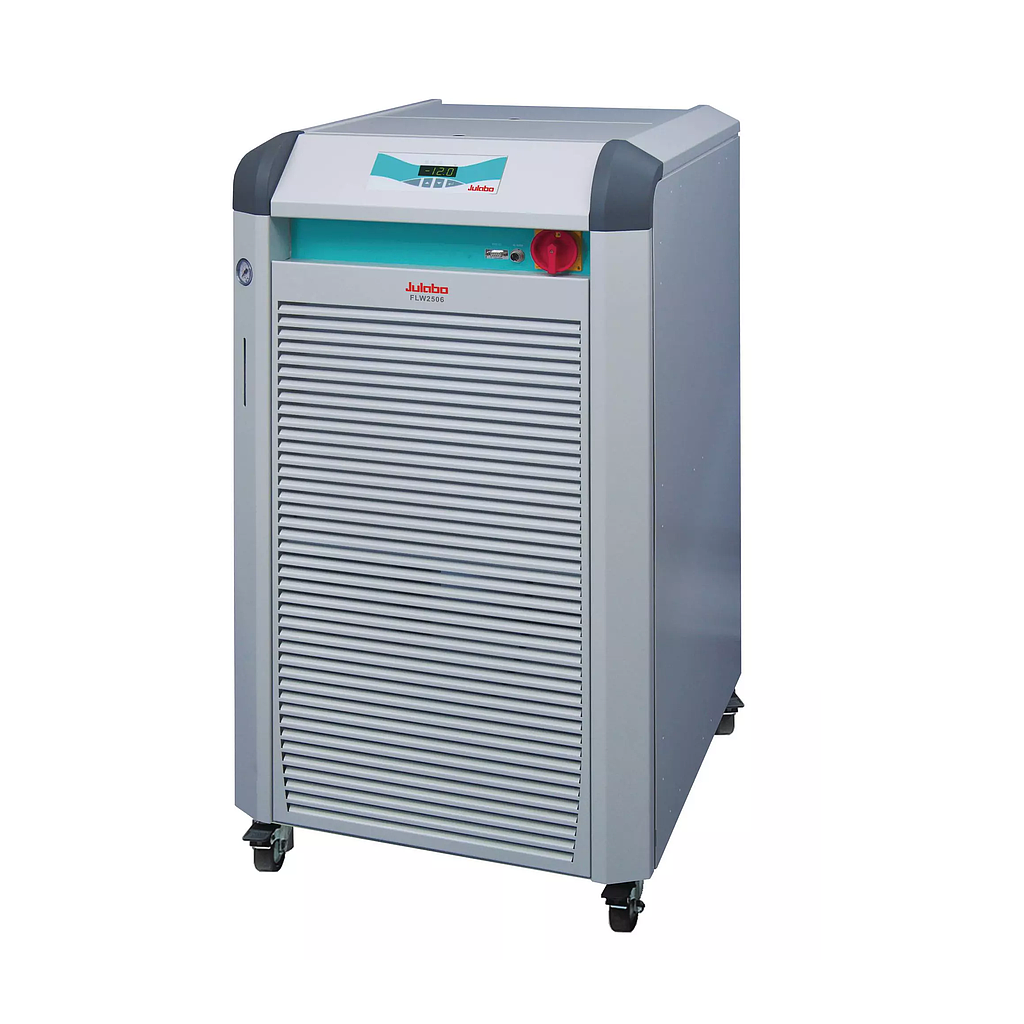

Julabo FLW2506 Recirculating Cooler (-15 ... +40 °C; 30L)
Dimensions and volumes:
Dimensions (W × L × H): 23.6 x 29.9 x 45.3 in.
Filling volume: 24 ... 30 l
Weight: 352.7 lbs
Pump connections: G1¼" male
Cooling Water Connection: G¾ in.
Barbed fittings inner diameter: 1"
Temperature values:
Working temperature range: -15 ... +40 °C
Temperature stability: ±0.5 °C
Setting the resolution of the temperature display: 0.1 °C
Temperature display resolution: 0.1 °C
Ambient temperature: +5 ... +40 °C
Return flow temperature max.: 80 °C
Performance values: 230V/50Hz (Schuko Plug - CEE 7/4 Plug Type F)
Cooling capacity: 2.5 Kw
Refrigerant: R452A
Global Warming Potential: 2140
Filling weight: 940 g
Carbon dioxide equivalent: 2.0116 t
Pump capacity flow pressure: 60 l/min
Circulation capacity pressure: 7.3 ... 87 psi
Power consumption: 15 A
Bath:
Bath tank: Stainless steel
Cooling:
Cooling of compressor: 1-stage Water
Cooling water pressure max.: 87 psi
Recommended cooling water properties:
Cooling water temperature range: 20 °C
Cooling water difference pressure: 29 psi
Cooling water consumption: 4.1 l/min
Electronics:
Interfaces: Alarm output / RS232 / Stakei
Temperature control: PID1
Temperature display: LED
Temperature setting: Keypad
