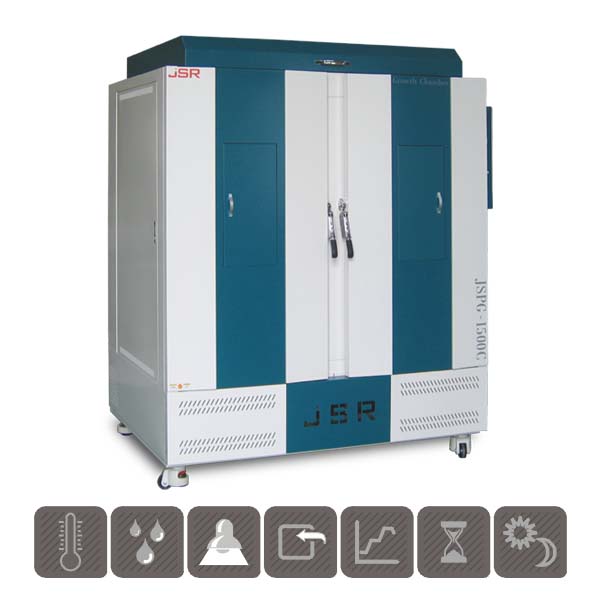

JSR JSPG-1500C ຫ້ອງການເຕີບໂຕຂອງພືດທີ່ມີແສງສະຫວ່າງ 3 ດ້ານ (1512 L; 0 ~ 50,000 Lux; 10.0 kW)
Chamber Volume (Capacity): 1512 Liters
Inner Dims. (W x D x H): 1400 x 900 x 1200 mm
Outer Dims. (W x D x H): 1880 x 1390 x 2065 mm
No. of Shelves Included: 8 EA
No. of Shelf Position: 35 EA by 25 mm Spacing
Heating: Forced Air Convection
Cooling: CFC Free Air Cooled Compressor
Control:
Program Mode: 1 Pattern Memory, 11 Segments
Manual Mode: Fixed Temp. Operation with Timer
Temp. Range: +0℃ ~ +60℃ (Light Off) / +10℃ ~ +60℃ (Light On), without Humidification
Accuracy: ±0.3℃ at +20℃, 60% RH, Light Off
Uniformity: ±1.0℃ at +20℃, 60% RH, Light Off
Temperature Sensor: Class A PT-100 Ω Sensor
Humidity Range: 30% ~ 85% RH
Humidity Accuracy: ±3.0% at 60% RH
Humidity Uniformity: ±6.0% at 60% RH
Humidity Sensor: Electronic Humiral Sensor
Illumination Range: 0 ~ 50,000 Lux by 8-Step Combination
Lamp Configuration:
Top: 6 ea x 150 Watt HQI Lamp
Side: 4 ea x 70 Watt HQI Lamp, 8 ea x 55 Watt Fluorescent Tube
Illumination Sensor: Built-in LUX Meter in Chamber
CO₂ Conc. Range: Ambient ~ 5,000 ppm (~0.5%)
CO₂ Accuracy: ±50 ppm
CO₂ Sensor: NDIR-Diffusion (Infra Red) CO₂ Sensor
CO₂ Remark: CO₂ Control Available Only When Optional CO₂ Control OHC-100 is Included
Safety:
Over-Temperature Cut-Off
Low Water Level Cut-Off
Over Current Cut-Off
Material:
Body: Epoxy Powder Coated Steel
Chamber: Stainless Steel 304
Electrical Requirement: 220 ±10% VAC, 50/60 Hz, 1-Phase
Heater Capacity: 10.0 kW
Power Rating: 55 amps
Plug Configuration: Supplied Without Plug to Connect to 60 Amp ELB Mains
Net Weight: 510 kg
