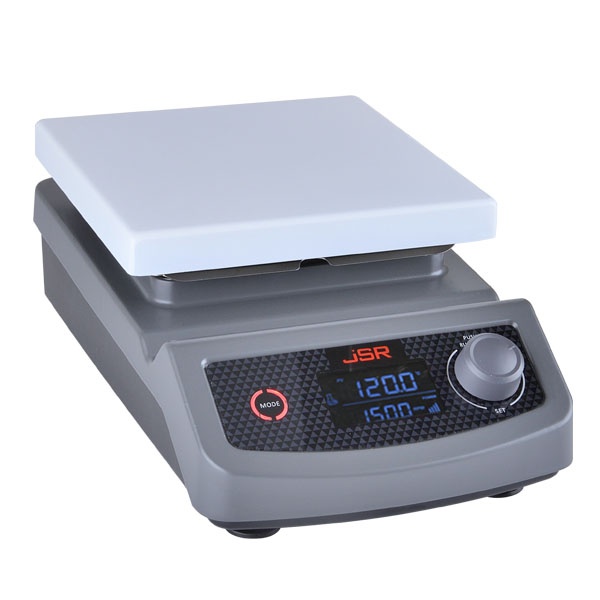

JSR JSHS-18DX ເຄື່ອງປັ່ນແມ່ເຫຼັກແບບແຜ່ນຮ້ອນດິຈິຕອລ (400℃; 80 ~ 1500 rpm)
Performance Data
Temp. Control Mode: Mode Selection (Oil or Water)
Temp. Range: Max. 400℃
Accuracy: ±0.3℃ at +200℃
Resolution (Display): 0.1℃
Resolution (Control): 0.5℃
Detached Magnetic Bar Detection: Yes
Speed Range: 80 ~ 1500 rpm
Stirring Quantity (H₂O): 20 L
Speed Resolution: 5 rpm
Usable Magnetic Bar: Max. 50 mm in Length
Timer: Max. 99 hr 59 min
Controller:
Digital Fuzzy Control with Capacitive Touch Button and Jog Dial
Full Size Digital Back Light LCD Display
Independent ON/OFF Switch
Heater and Motor
Heating Output: 600 Watt
Temp. Sensor: CA Type Embedded Sensor
Motor: 30 Watt BLDC Motor
Dimension Data (W x D x H mm)
Plate Dims.: 180 x 180 mm
Overall Dims.: 180 x 325 x 110 mm
Safety Data
Safety Device:
Over Temp. Cut-Off
Over Current Cut-Off
Material Data
Top Plate: Aluminum with Ceramic Coating
Body: Aluminum Casting with Epoxy Powder Coating
Base: Engineering Plastic
Electrical Data
Rated Voltage: 230 ±10% VAC
Power Frequency: 50 / 60 Hz
Phase: 1 Phase
Nominal Power: 650 Watt, 3.0 amp
Plug Configuration: CEE 7/7 Schuko or BS 1363
Usable Condition
Temp. & Humidity: 5℃ ~ 40℃, < 80% RH
