Max. Workpiece Size L x W x H: 1550 x 1050 x 515 mm
Work Table Size: 1345 x 855 mm
Max. Working Load: 4500 kgs
X / Y / Z Axis Travel: 1000 / 600 / 520 mm
U / V Axis Travel: 160 / 160 mm
Wire Diameter Range: Ø 0.1~0.3 mm
Max. Taper Angle /Workpiece Thickness: ± 22.5 °/ 160mm
Max. Wire Load: 16 kgs
Water Tank Capacity: 2400 L
Net Weight: 8000 kgs
Machine Layout W x D x H: 4200 x 4350 x 3250 mm
Standard Accessories
Automatic Vertical Alignment Jig: 1 Set
Power Feed Contact: 2 Pcs
Filter: 2 Pcs
Clamping Tool: 1 Set
Wire Guide ( Ø 0.25 mm): 1 Set
Brass Wire ( Ø 0.25 mm / 5kg): 1 Roll
Ionic Exchange Resin (5L / 10L)
Tool Box: 1 Set
X, Y axes linear scale are included in Wi-640S & Wi-1065SA

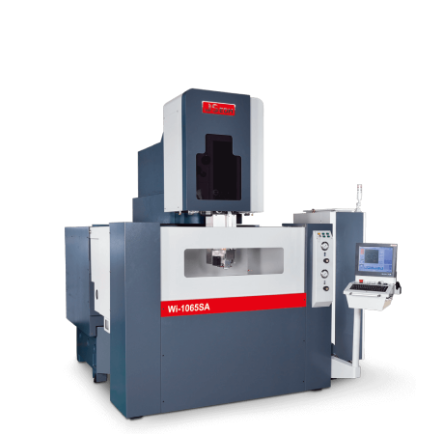

Wi-1065SA contains A.W.T System
Optional Accessories
Wire Guide ( Ø 0.1 ~ 0.2 mm)
22.5° Nozzle
3R/EROWA Clamping Tool
Parallel Bar
Water Chiller
Power Regulator
X, Y Axes Linear Scale
Auto Wire Threading System
Auto Wire Cutting System
CAD/CAM Software
PCD Professional Electric Circuit
6 Axes Or Above Control
Wire Speed Meter
Wire Tension Meter
Water Resistance Meter
