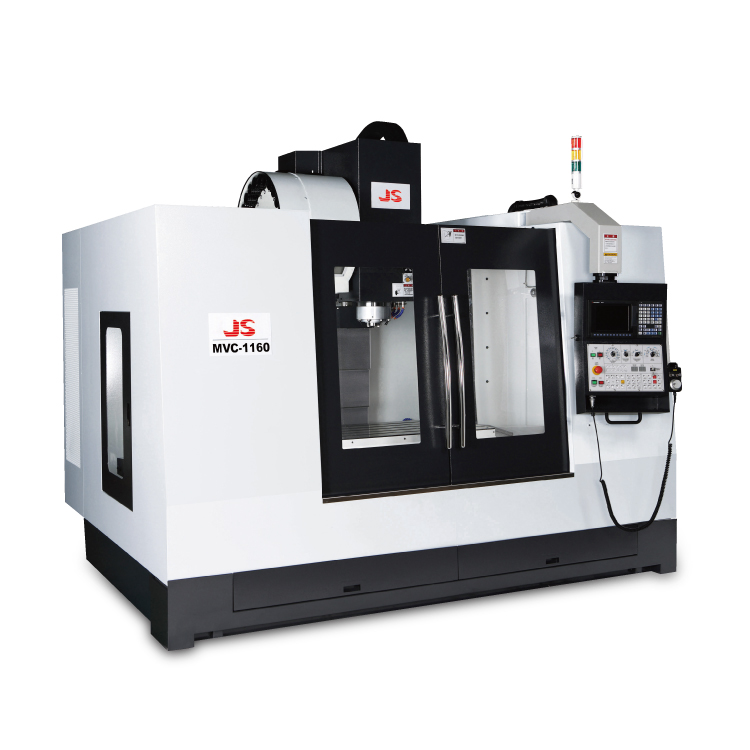

JSEDM MVC-1160 MVC Vertical Machine Center (8000 rpm / 6000 rpm)
X axis travel: 1100 mm
Y axis travel: 600 mm
Z axis travel: 530 mm
Spindle center to column: 650 mm
Spindle nose to table surface: 150-760 mm
Table work area: 1200 x 600 mm
Dimension of T-slot: CD 100 x 18 x 5T mm
Max. table load: 800 kg
Spindle taper / Bore diameter: BT40 / BT50
Driving method: Belt
Spindle motor-cont / 30 min: 15 HP (Mitsubishi or Fanuc)
Spindle speed: 8000 rpm / 6000 rpm
Rapid feed rate - X x Y x Z: 20 x 20 x 15 m/min
X x Y x Z ball screw: 40 x 12B2 (dia. x pitch)
Motor (XYZ): 2.5 / 2.5 / 3.5 KW
Max. tool length: 250 mm (9.8") x 89 mm (3.5")
Max. tool weight: 6 kg / 13.2 lbs
Number of tools: 20 / 24 pcs
Tool selection method: Bi-direction & Min Path
Min. / Max. air pressure: 4 kg / 6 cm²
Coolant tank capacity: 380l
Net weight: 8000 kg
Gross weight: 8300 kg
Floor space requirement (L x W x H): 300 x 219 x 246 cm
Packing size (L x W x H): 265 x 228 x 245 cm
Container: 40" HQ
