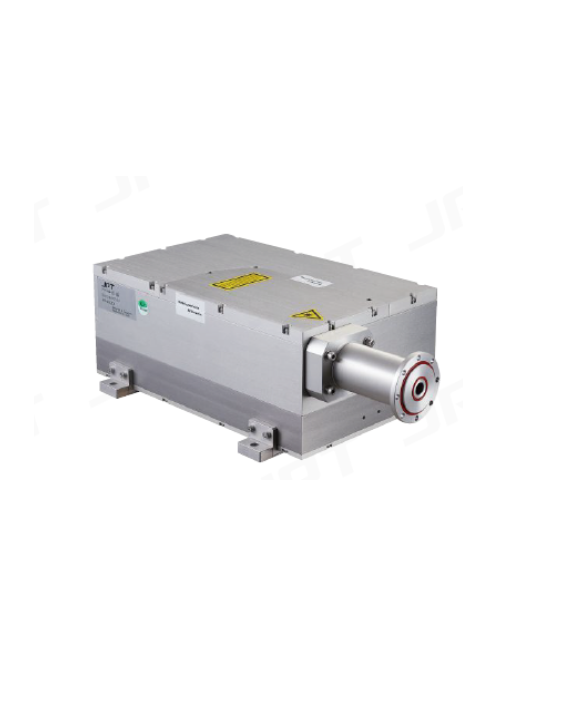

JPT Seal-532-7 DPSS Laser (532 nm, 7W@50kHz, 40~300kHz)

Application

Photoelectric Integration, Anti-interference, One-button Start

Fully sealed structure, dust-proof, moisture-proof

Intracavity self-purification with longer lifetime

Compact size, saving installation space

Specification

Central emission wavelength: 532 nm

Average power: 7W@50kHz

Pulse Width: <18ns@50kHz

Frequency Range: 40~300kHz

Spatial mode: TEM00

Beam quality: M² ≤ 1.2

Beam circularity: >90%

Beam full divergence angle: ≤3.0mrad

Beam diameter: 0.6 ± 0.15mm

Polarization ratio: > 100:1

Polarization orientation: vertical

Average power stability: RMS ≤ 3% @ 24hrs

Pulse to pulse energy stability:  RMS≤3%@40kHz

Operating temperature: 0~40℃

Storage temperature:  -15~50℃

Cooling method: water-cooled

Supply voltage: 12 (DC)

Average power consumption: <200W

Dimension (W x D x H): 290 × 180 × 114 mm

Weight: 8.7 kg
