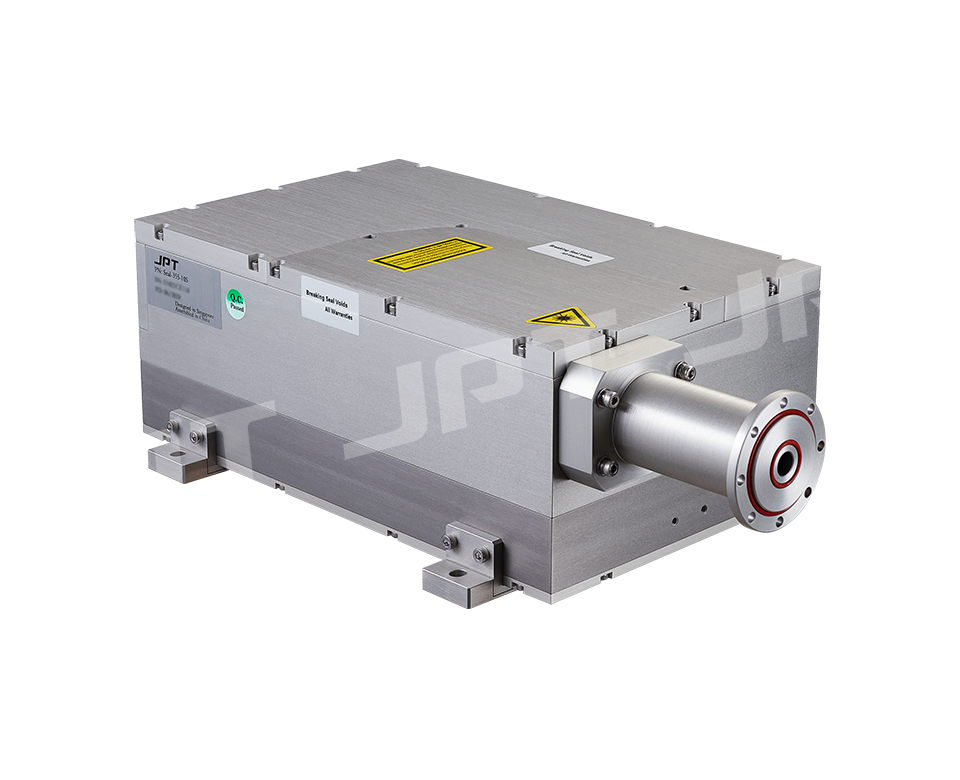

JPT SEAL-355-5 DPSS Laser (>5W@40kHz/ <15ns@40kHz/ 20kHz-150kHz)

Application

Photoelectric Integration, Anti-interference, One-button Start

Fully sealed structure, dust-proof, moisture-proof

Intracavity self-purification with longer lifetime

Compact size, saving installation space

Specification

Central emission wavelength: 532 nm

Average power: >5W@40kHz

Pulse duration: <15ns@40kHz

Pulse repetition rate range: 20kHz-150kHz

Spatial mode: TEM00

Beam quality: M² ≤ 1.2

Beam circularity: >90%

Beam full divergence angle: ≤2mrad

Beam diameter: Non- expanding: 0.55±0.15mm

Polarization ratio: > 100:1

Polarization orientation: horizontal

Average power stability: RMS ≤ 3% @ 24hrs

Pulse to pulse energy stability: RMS ≤ 3% @ 40kHz

Operating temperature: 0~40℃

Storage temperature: -15~50℃

Cooling method: water-cooled

Supply voltage: DC 12V

Average power consumption: <350W

Dimension (W x D x H): 302 x 180 x 114 mm

Weight: 9.26 kg
